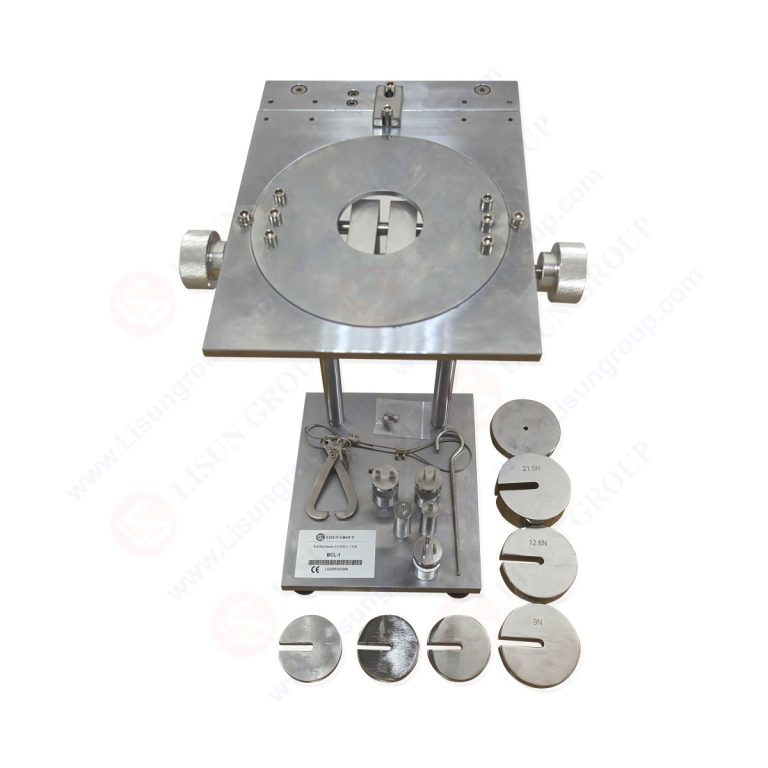

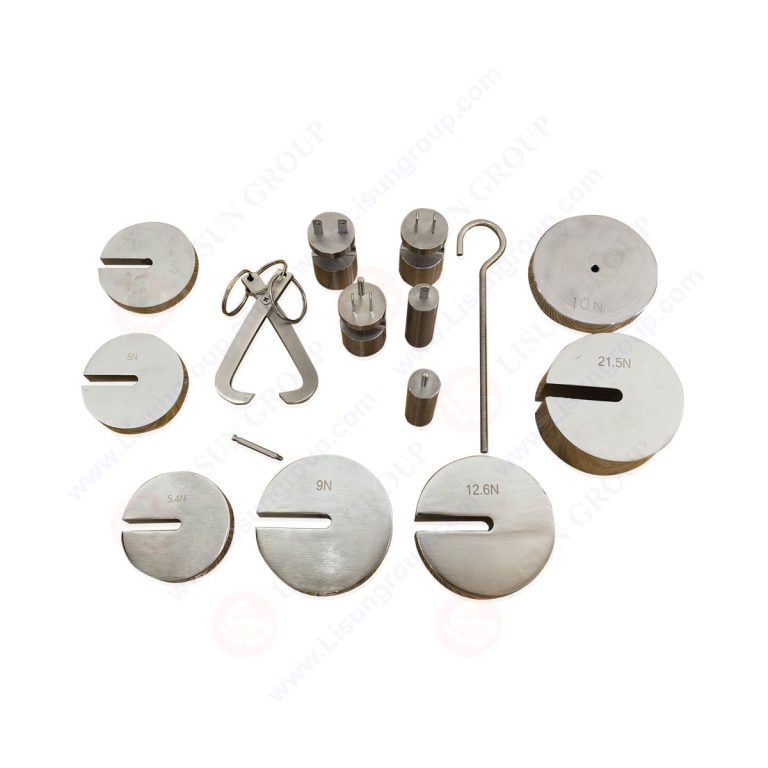

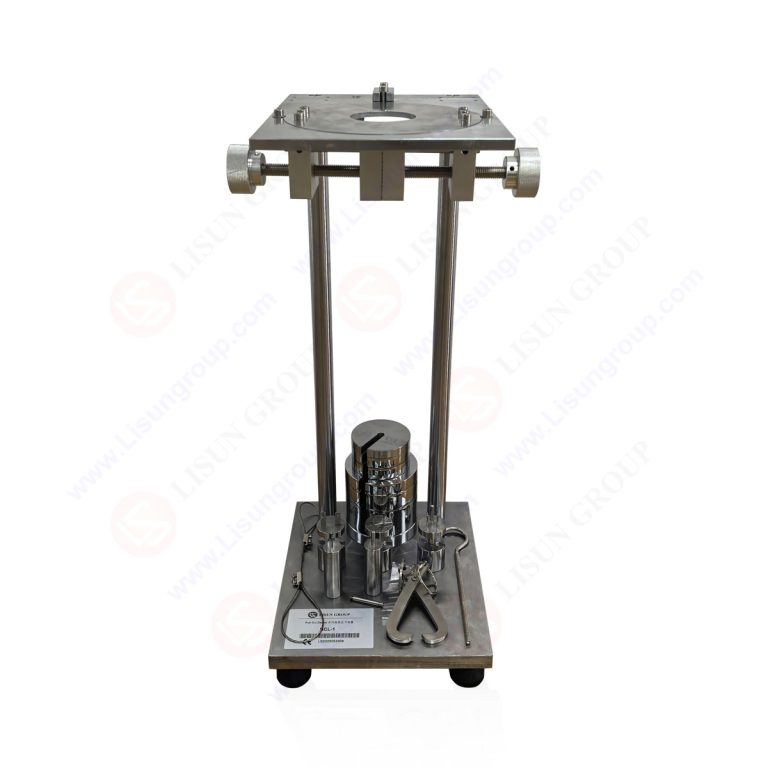

Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus

Name: Pull Out Device
Brand: LISUN
SKU: BCL-1
Price: 1600 USD
Availability: InStock
Rating: 5 (1 reviews)

Product No: BCL-1

Specifications
Standards

The BCL series Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus is designed to check the force required to pull a plug out of a socket and the socket’s ability to withstand lateral stress. By means of supporting standard test plugs, pins and weight assemblies, the device simulates the force conditions during plug insertion and extraction in actual service scenarios to determine whether the withdrawal force meets operational requirements. Meanwhile, it utilizes lateral stress application components to simulate the lateral force that may be generated by electrical appliances plugged into the socket, assessing the socket’s structural stability under such stress conditions and ensuring that it does not malfunction due to lateral stress during daily use. This device is applicable to plugs and sockets for household and similar purposes, covering the product testing needs within specific rated voltage and rated current ranges.

Standards：

Standards	Standards Name
IEC 60884-1:2013	Plugs and socket-outlets for household and similar purposes—Part 1: General requirements
GB/T 2099.1-2021	《家用和类似用途插头插座第 1 部分：通用要求》

Specifications:

LISUN Model	BCL-1	BCL-2	BCL-3	BCL-4
Test Function	Max and min pull-out force + Lateral Strain	Max and min pull-out force		Lateral Strain
Max Current	0~16A	0~16A	0~32A	0~16A
Main Weight	21.5N、9N、12.6N one piece each			N/A
Additional Weight	4N、5N 、5.4N one piece each			N/A
Clamping Device	1N，quantity：1 个			N/A
Weight Tray	10N，quantity：1 个			N/A
Test Rack	One unit, dimension：280250590mm
The max pull-out force gauge/Lateral Strain gauge	2-pole 10A, 3-pole 10A and 16A		2-pole 10A，3-pole 10A and 16A，3-pole 32A	2-pole 10A，3-pole 10A and 16A
Minimum pull-out force gauge/weight	10A/1.5N，16A/2N	10A/1.5N，16A/2N	10A/1.5N，16A/2N，32A/3N	N/A
Transverse stress weights	5N，quantity：1pc	N/A		5N，quantity：1pc
Transverse stress crossbar	1pc	N/A		1pc

IEC 60884-1 Figure 25

IEC 60884-1 Figure 26

IEC 60884-1 Figure 16
