Product No: SW-6

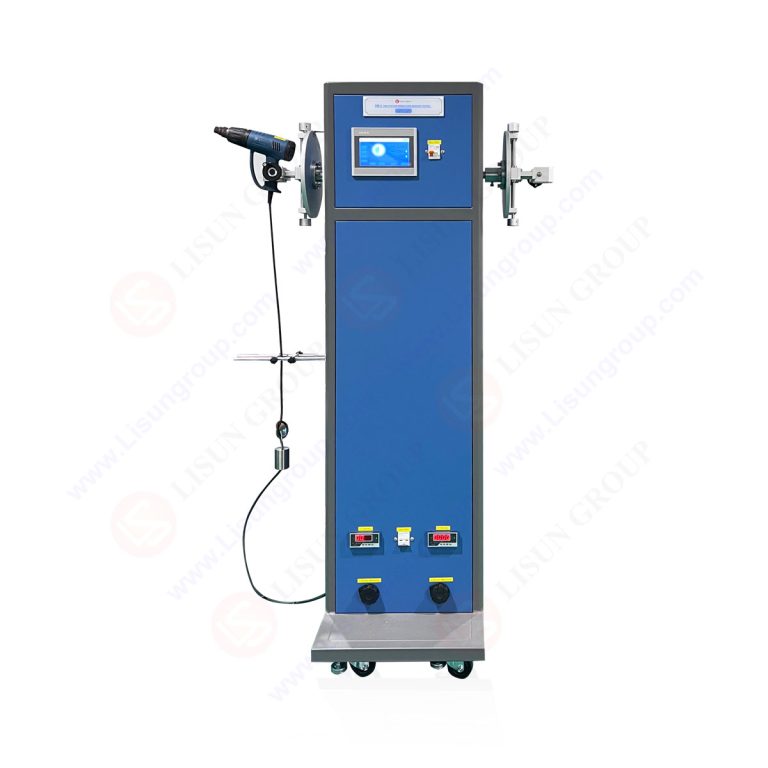

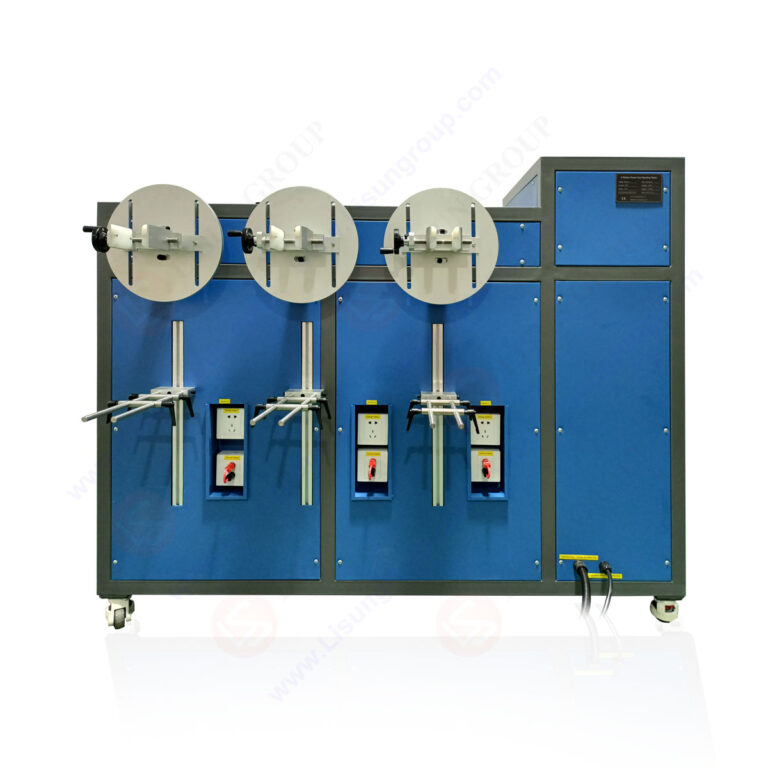

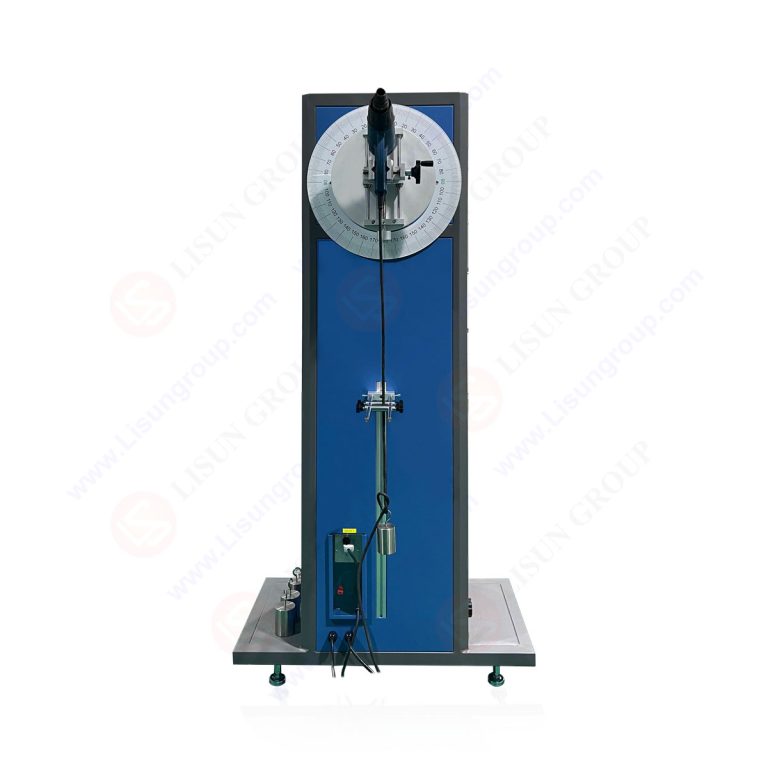

The SW-6 Power Cord Flexibility Bending Tester is used to test the bending resistance of household appliance power cords at the point where they enter the appliance. The motor drives the turntable to rotate, applying a load and rated voltage to the cord, causing the sample to bend left and right at a set speed and angle. The machine automatically stops when the preset number of bends is reached or when the cord breaks and no signal is received, thus verifying the reliability of the power cord.
Standards:
| Standards No. | Standards Name |
| IEC 60884-1:2020 | Plugs and socket-outlets for household and similar purposes – Part 1: General requirements |
| IEC 60745-1:2019 | Hand-held motor-operated electric tools – Part 1: Safety requirements |
| IEC 60335-1:2023 | Household and similar electrical appliances – Part 1: Safety requirements |
| GB/T 2099.1-2021 | 《家用和类似用途插头插座 第 1 部分：通用要求》 |
| GB/T 3883.1-2014 | 《手持式电动工具的安全 第 1 部分：通用要求》 |
| GB/T 4706.1-2024 | 《家用和类似用途电器的安全 第 1 部分：通用要求》 |
Specification:
| LISUN Model | SW-1 | SW-2 | SW-6 |
| Test Station | Single station | Two stations | Six stations |
| Electrical Control Method | PLC intelligent integrated control, 7-inch human-machine touch interface operation | ||
| Driving Method | Servo Motor Drive | ||
| Sample Clamping Method | Mechanical clamping, adjustable clamping point position | ||
| Bending Angle | 0-360° Adjustable (can be set to ±30°, ±45°, ±60°, ±90°) | ||
| Bending Rate | 0-60 times/min (Variable frequency speed regulation) | ||
| Bending Times | Can be set to 0~999,999 (default is 25 times) | ||
| Load Weight | 1 set of weights；5N，10N，20N | 2 set of weights：5N，10N，20N | 6 set of weights：5N，10N，20N |
| Load Power Supply | Load Current: 0~20A (adjustable) | ||
| Test Judgment | Judge based on the signal given by whether the current is conducting | ||
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 23.4
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Figure 28
IEC 60884-1: 2022 Clause 23.4 And Figure 28
IEC 60745-1: 2006 Clause 24.12
IEC 60745-1: 2006 Figure 9
IEC 60335-1: 2020 Clause 25.14
IEC 60335-1 Figure 8
