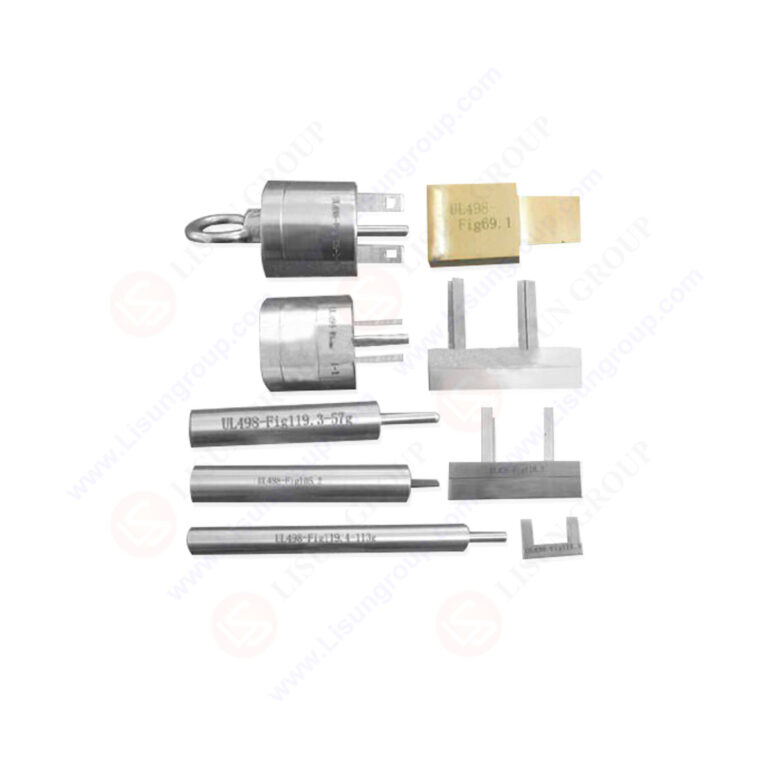

Product No: GNGPL-UL498
Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Feature:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements; Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
Standard:
UL 498 “Attachment Plugs and Receptacles”
Specification:
| LISUN Model | Product Specifications（UL 498 -2019） |
| SMT-PA100A | Articulate probe with web stop Figure 9.1 |
| SMT-PA190 | Probe Figure 10.1 |
| SMT-PA215A | Flat probe Figure 31.1 |
| GNGPL-SB1860 | Reference plug Figure 74.1 |
| GNGPL-SB1888 | Typical test apparatus Figure 74.2 |
| GNGPL-SB1889C | Improper insertion test blades Figure 100.1（test blade1&test blade2） |
| GNGPL-SU3639 | Test Gauge of UL 498 Figure 109.1 |
| GNGPL-S3635A | Test Gauge of UL 498 Figure 109.2 |
| GNGPL-SB1276A | Receptacle test fixture Figure 124.1 |
| GNGPL-SB1277A | Push out tool Figure 124.3 |
| GNGPL-S3638 | Bridge Figure 124.5 |
| GNGPL-SB1609A | Test pin A Figure 125.1 |
| GNGPL-SB1610 | Test pin B Figure 125.2 |
| GNGPL-SB0704E | 57g ground pin Figure 125.3 |
| GNGPL-SB1622E | 113g ground pin Figure 125.4 |
| GNGPL-SU0196 | No.14AWG test pin Figure 136.2 |
| GNGPL-SM390 | Small Test Probe with UL498 Figure 139.1 |
| GNGPL-SU0196 | Large Test Probe of UL498 Figure 139.2 |
| GNGPL-S3336 | Fixture for assembly security test Figure 174.2 |
| GNGPL-SB0704A | Standard grounding pin Figure SC 21.1 |
| GNGPL-SB0705 | Over size ground pin Figure SC 25.1 |
