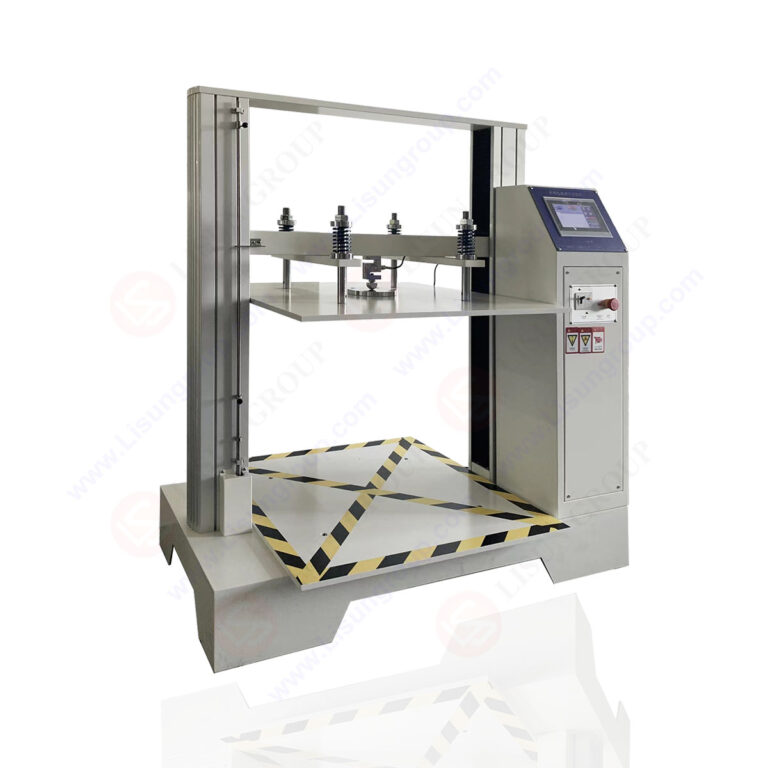

Box/Carton Package Compression Tester

The LS-PUSH-600 carton compression tester is used for testing the compression resistance and pressure holding capacity of various packaging materials and cartons, providing important reference data for packaging design optimization and finished product stacking height planning. This equipment adopts a high-precision transmission structure and a stable control system, applying uniform pressure to the test sample through adjustable compression speed. It accurately captures key data such as peak load and average load during the testing process and can set the pressure holding time as needed to simulate the stacking pressure that packaging boxes may experience during storage and transportation. The equipment is equipped with multiple safety protection mechanisms to ensure the safety and reliability of the testing process, and can record and store test data, providing objective and accurate support for product quality assessment.

Standards:

Features:
The machine structure is designed with high-precision, low-friction, gapless double ball screws and guide columns, enclosed in a high-grade paint-treated casing, which enhances load efficiency and structural rigidity. The control system utilizes a high-response frequency AC motor to ensure high transmission system efficiency, smooth operation, low noise, and speed accuracy within ±0.2%.

Specifications:
• Force Units: Switchable between KG, LB, and N
• Report Items: Serial number, peak value, average value, set holding pressure value, memory capability
• Safety Features: Overload protection, overpressure protection, limit protection
• Structure: Servo motor, ball screw

ASTM-D642
