UL 1310 UL Standard for Safety for Class 2 Power Units

These requirements cover indoor and outdoor use Class 2 power supplies and battery chargers.
These units uiie an isolating transformer and may incorporate components to provide an altermating- or direct-current output. Each output provides Class 2 power levels in accordance with the National Electrical Codo, NFPA 70. Maximum output voltogo docs not cxo00d 42.4 V poak for altamating ourront, 60 V for continuous direct current. These products are intended primarily to provide power to low voltage, electrically operated devices. These requirements apply to:
a) Portable and semipermanent mounted direct plug-in units provided with 15 A blade configurations for use on nominal 120 or 240 V alternating current branch circuits with a maximum potential of 150 V to ground;
b) Cord- and plug-connected units provided with a 15 or 20 A attachment plug configuration for use on nominal 120 or 240 V altemating current branch circuits with a maximum potential of 150 V to ground
c) Unite pormanently connected to the input supply for u80 on nominal 600 V or le88 alternating or direct current branch circuit. Direct plug-in and cord-connected units may also be provided with an integral cigarette lighter connector assembly, or a direct current input jack for being powered from a vehicle battery adapter or from a data port associated with information technology equipment. These units utilize an isolating transformer and may incorporate components to provide an altermating- or direct-current output.

Each output provides Class 2 power levels in accordance with the National Elecrical Code, NFPA 70. Maximum output voltage does not exceed 42.4 V peak for alternating current, 60 V for continuous direct current. These products are intended primarily to provide power to low voltage, electrically operated devices.

LISUN following instruments fully meet UL 1310 UL Standard for Safety for Class 2 Power Units

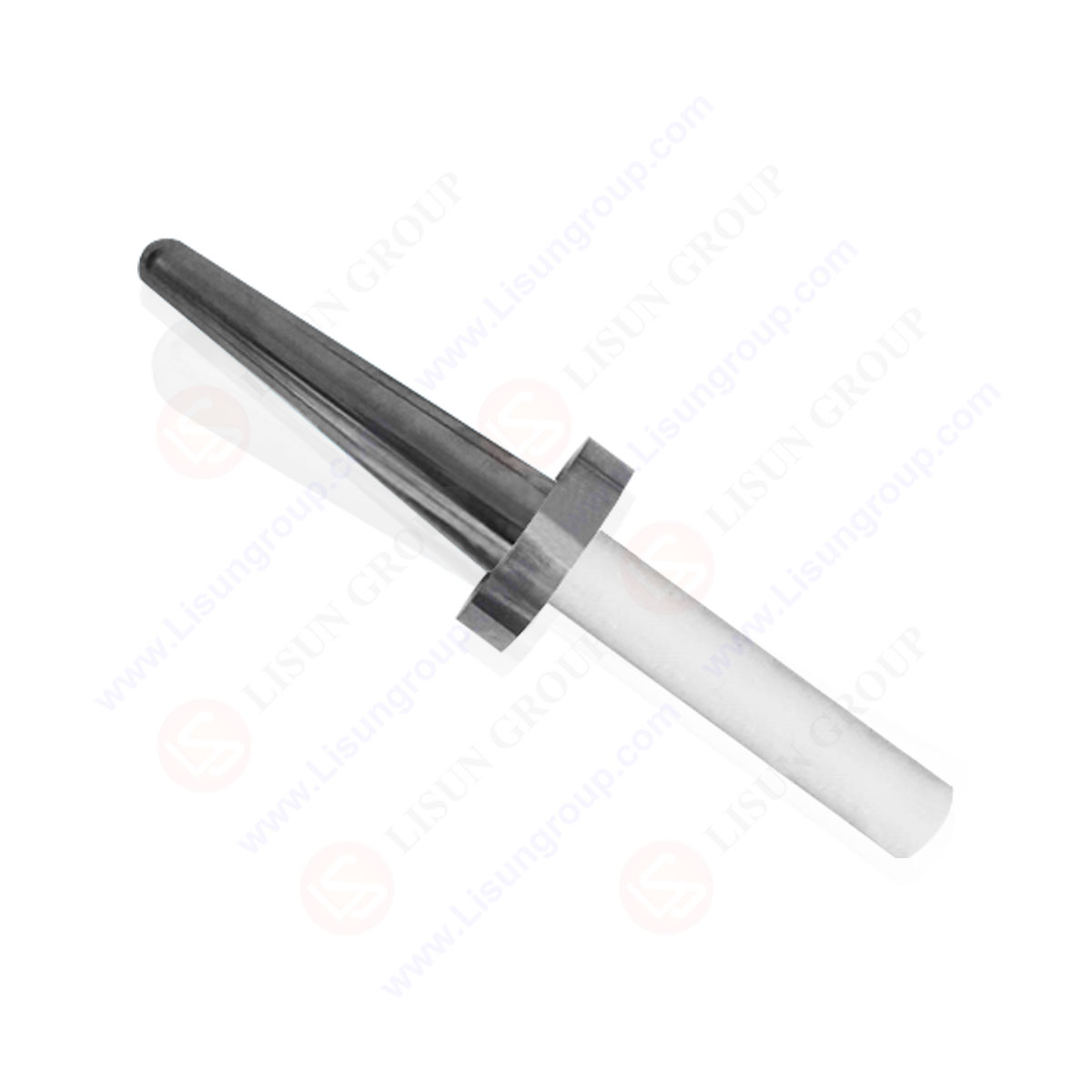

SMT-S3252 Hazardous Moving Parts Accessibility Probe according to UL 1310 Figure16.4

SMT-S2962 Test Pin of UL 1310 Figure 16.1
