Product No: RTEU-SP5K

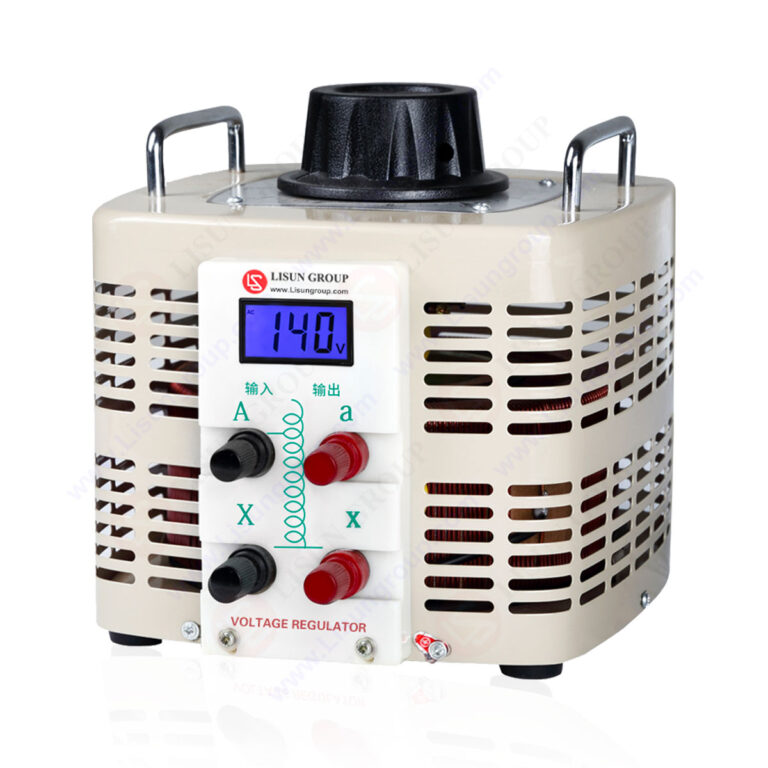

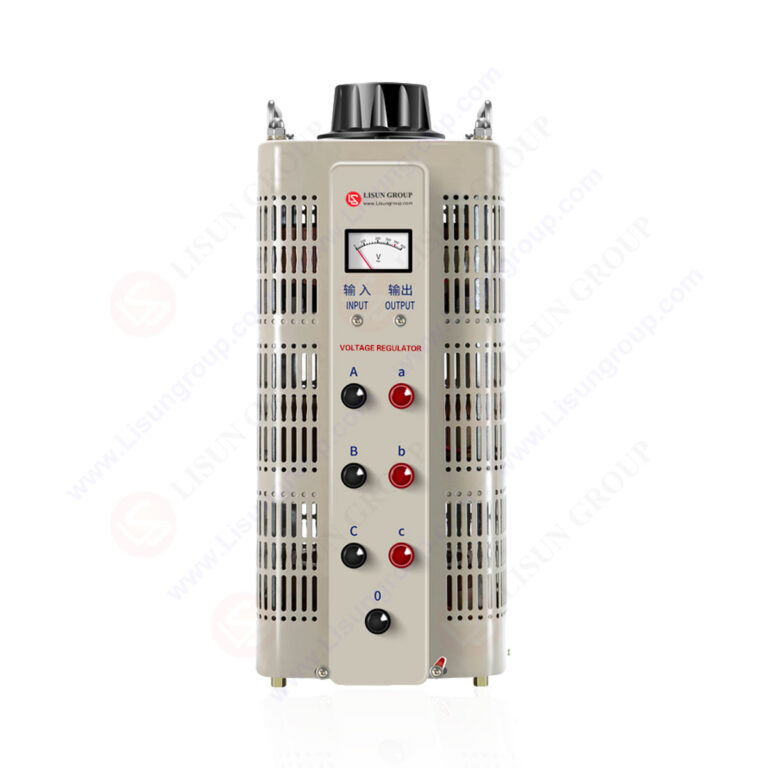

Voltage Regulator (also known as a step-up or step-down isolation transformer) is an AC voltage conversion device that also has an isolation function. It is wound with a toroidal core, which reduces power consumption and increases efficiency. By using this product, the voltage of various power grids can be converted into a universal voltage output, and all electronic and electrical equipment can be used safely at rated power. The voltage regulator can provide a stable power supply for laboratory test equipment.
Specifications:
• Single phase output current = Power * 80% / Output voltage
• Three-phase output current = Power * 80% / 1.732 / Output voltage
• Input voltage = Customers’ local rated voltage (Please inform the specific value of input voltage when placing an order)
• Output power = Actual power used * 1.5
| LISUN Model | Input voltage | Output voltage | Power |
| RTEU-SP1K | Single Phase/198-264V | 0-300V (Adjustable) | 1KVA |
| RTEU-SP5K | Single Phase/198-264V | 0-300V (Adjustable) | 5KVA |
| RTEU-SP10K | Single Phase/198-264V | 0-300V (Adjustable) | 10KVA |
| RTEU-SP15K | Single Phase/198-264V | 0-300V (Adjustable) | 15KVA |
| RTUS-SP1K | Single Phase/99-132V | 0-300V (Adjustable) | 1KVA |
| RTUS-SP5K | Single Phase/99-132V | 0-300V (Adjustable) | 5KVA |
| RTUS-SP10K | Single Phase/99-132V | 0-300V (Adjustable) | 10KVA |
| RTUS-SP15K | Single Phase/99-132V | 0-300V (Adjustable) | 15KVA |
| RTEU-TP6K | Three Phases/340-480V | 0-500V (Adjustable) | 6KVA |
| RTEU-TP10K | Three Phases/340-480V | 0-500V (Adjustable) | 10KVA |
| RTEU-TP15K | Three Phases/340-480V | 0-500V (Adjustable) | 15KVA |
| RTUS-TP6K | Three Phases/198-264V | 0-500V (Adjustable) | 6KVA |
| RTUS-TP10K | Three Phases/198-264V | 0-500V (Adjustable) | 10KVA |
| RTUS-TP15K | Three Phases/198-264V | 0-500V (Adjustable) | 15KVA |
