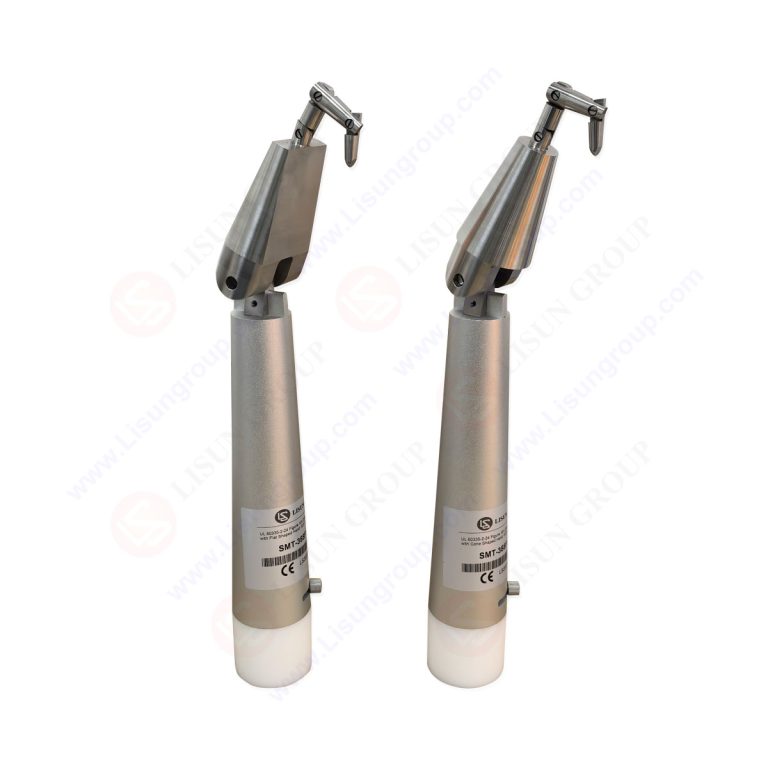

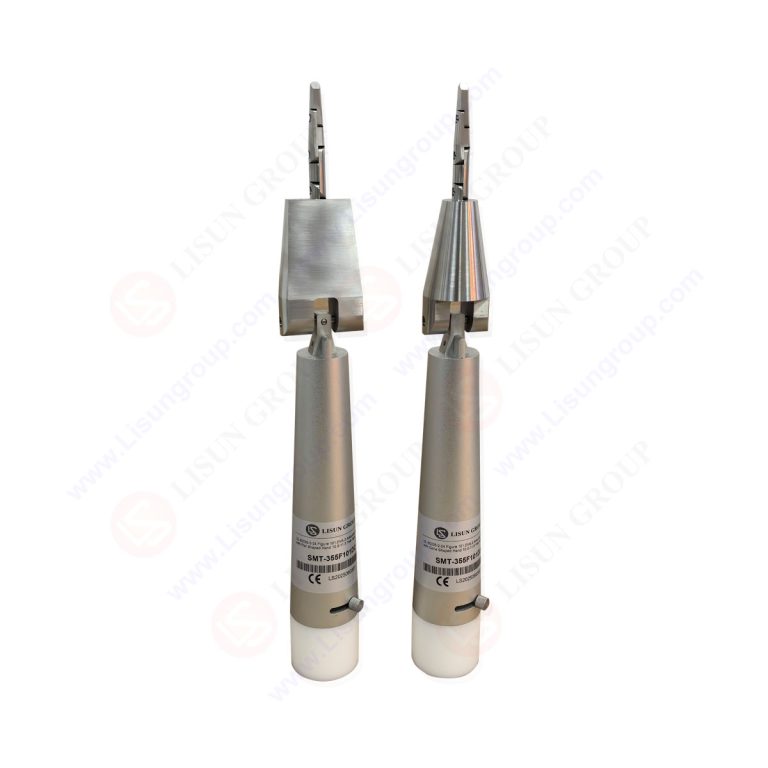

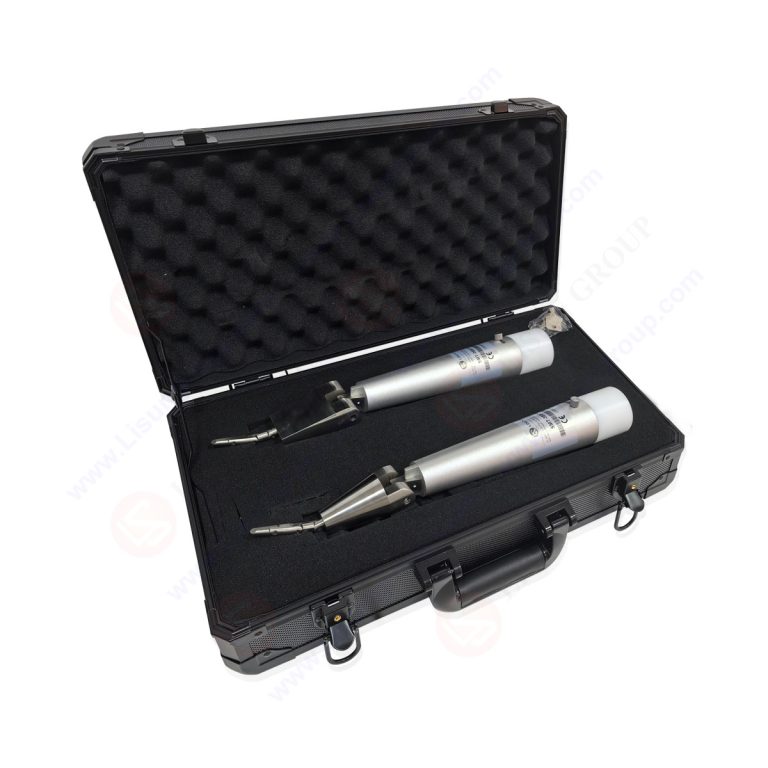

UL 60335-2-24 Figure 101 DVA 2 Test Probe

Product No: SMT-355F101D2

  • Specifications

  • UL 60335-2-24 Figure 101 DVA 2 Test Probe is a dedicated safety tool for kitchen appliance enclosure testing. It has a rigid, curved structure to mimic human hand access to tight spaces, applying 50N calibrated force. It verifies if enclosures block access to hazardous parts (like heating elements), fitting UL and IEC standards for kitchen appliance production QC and safety certification.

    Standards:

    Standards No. Clause/Figure Standards Name
    IEC 60335-2-24:2020 Clause 11.7, Figure 101 DVA 2 Household and similar electrical appliances – Safety – Part 2-24: Particular requirements for electric cooking ranges, hobs, ovens and similar appliances
    UL 60335-2-24:2022 Clause 11.7, Figure 101 DVA 2 Standard for Safety of Household and Similar Electrical Appliances – Part 2-24: Particular Requirements for Electric Cooking Ranges, Hobs, Ovens, and Similar Appliances

    Specifications：

    Parameter Details
    Probe Overall Length 150mm ± 3mm
    Probe Working End Diameter 12mm ± 0.5mm
    Curvature Radius 25mm ± 1mm
    Rated Test Force 50N ± 5N
    Probe Material Stainless steel (Surface roughness Ra ≤ 1.6μm)
    Handle Material Heat-resistant insulated plastic (up to 120℃)
    Handle Length 80mm ± 2mm
    Applicable Appliance Type Electric ovens, cooktops, grills, warming drawers
    Force Application Direction Adjustable (to match appliance enclosure angles)


    Test Procedures:​
    1. Power off the tested kitchen appliance and place it on a stable bench.​
    2. Check the probe for bends, cracks, or loose parts to ensure usability.​
    3. Align the probe’s working end with the appliance’s accessible gaps (e.g., door seams).​
    4. Insert the probe, apply 50N force, and hold for 10-15 seconds.​
    5. Check if the probe touches hazardous parts; record results and clean the probe.​

    Applications:​
    1. Safety testing for electric oven enclosures per UL 60335-2-24:2022 (US market).​
    2. Hazardous part access checks for electric cooktops per IEC 60335-2-24:2020 (global export).​
    3. Production QC for kitchen grill enclosures to meet UL safety requirements.​
    4. Certification testing for electric warming drawers per GB 4706.22-2008 (China market).​
    5. Anti-touch safety verification for built-in kitchen ovens per IEC 60335-2-24.​


    UL 60335-2-24 Figure 101.DVA.2

    UL 60335-2-24 Figure 101.DVA.2
