UL 1598 Surface Ceiling Temperature Test Apparatus
UL 1598 Surface Ceiling Temperature Test Apparatus

GET A QUOTE

=

UL 1598 Surface Ceiling Temperature Test Apparatus

Product No: LS-B72

  • Specifications

  • The LS-B72 UL 1598 temperature rise test ceiling is structurally designed to meet the temperature rise testing requirements of lighting products and is specifically designed for verifying the temperature rise performance of lighting equipment. This test ceiling integrates a compatible junction box, temperature sensing auxiliary components, and a standardized support structure, simulating the actual use scenario of lighting equipment installed in a ceiling. Equipped with movable brackets and casters, its placement can be flexibly adjusted, facilitating daily laboratory testing operations and equipment management. Furthermore, standardized board materials, supporting timber, and cable configurations ensure the consistency and stability of the testing environment, providing a reliable testing platform for accurately obtaining temperature rise data of lighting equipment during actual operation.

    Standards:

    Standard No. Standard Name
    UL 1598:2024 Standard for Safety for Luminaires
    UL 1993:2024 Standard for Safety for Self-Ballasted Lamps and Lamp Adapters

    Specifications:

    Item Name Specifications
    Octagonal Outlet Box Westing House 1050 (USA), Specifications: 4 x 1-1/2 inch
    Ceiling branch wire temperature detector Optional equipment 1 piece
    External dimensions Length: 1400mm*Width: 1220mm*Height: 2050mm
    Front and back plates 1218mm*1218mm，12mm Thickness
    Timber on both sides 2×6 inches
    Timber at both ends 1×6 inches
    Intermediate support timber 2×4 inches
    Neutral wire Live wire Black and white 14AWG 1015
    Ground wire Green 15AWG 1015
    Ceiling height from the ground 1.85m
    Fiberglass Double-layer vertical 89mm, with factory certificate, no calibration certificate.

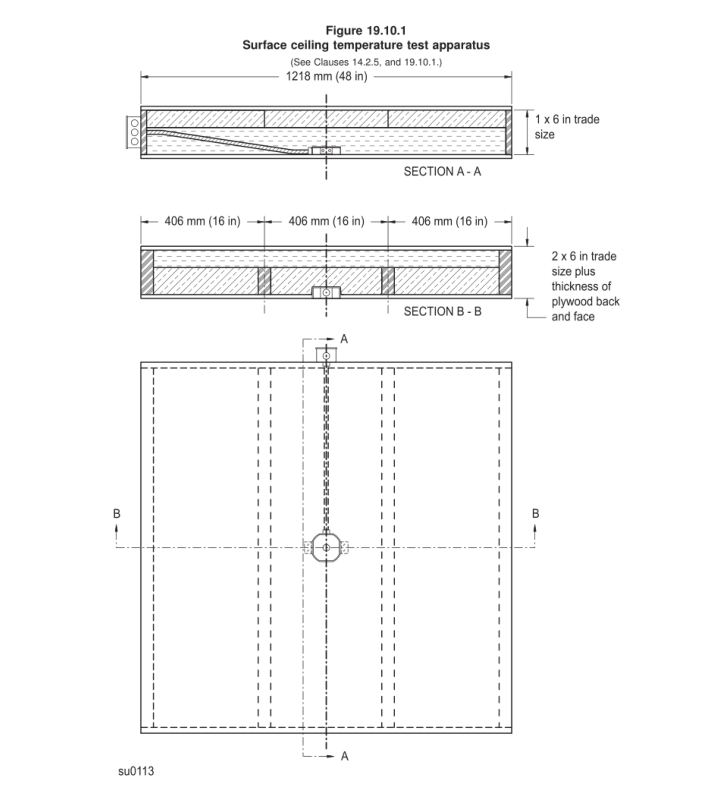

    UL 1598 Figure19.10.1

    UL 1598 Figure19.10.1
