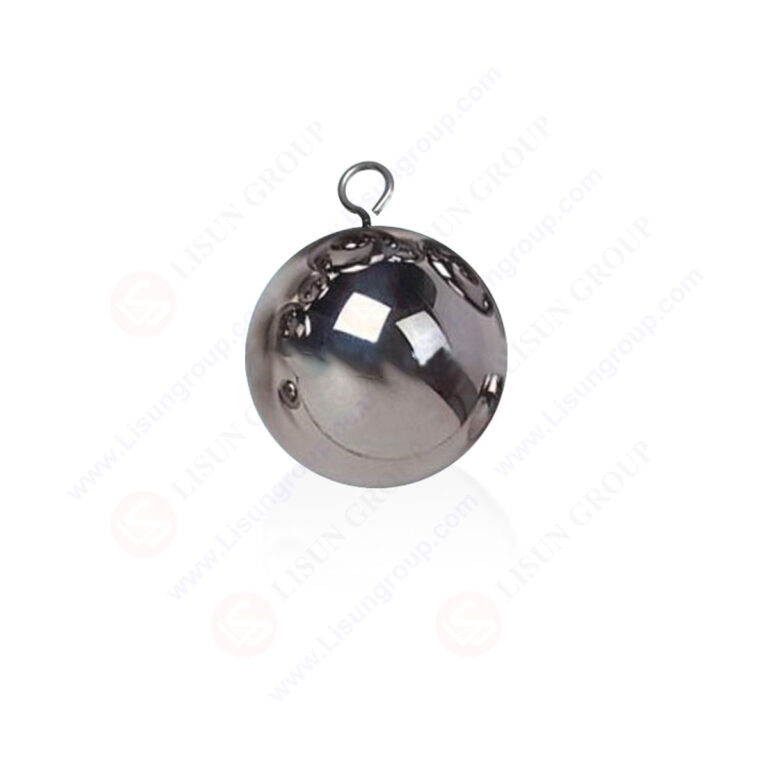

The UL 1989 UL 1418 Impact Test Ball is a 2-inch steel sphere that weighs 535 grams

This UL 1989/UL 1418 Impact Test Ball is a specialized safety tool designed to verify the impact resistance of enclosures for electrical and electronic equipment. It features a 2-inch (50.8mm) diameter solid steel sphere weighing 535 grams—engineered to simulate accidental impact (e.g., falling objects) on device housings. By delivering controlled impact force, it checks if enclosures remain intact and do not expose hazardous internal parts (e.g., live wires, moving components) post-impact.

Specifications:
Tool Type: UL 1989/UL 1418 Impact Test Ball (2-inch steel sphere)
Sphere Material: Solid carbon steel (high strength, resistant to deformation during impact; ensures consistent force delivery)
Key Dimensions:
– Diameter: 2 inches (50.8mm) ± 0.1mm
– Weight: 535 grams ± 5 grams (meets UL’s force requirements for impact testing)
Surface Treatment: Smooth, deburred finish (prevents scratches or additional damage to tested equipment enclosures)
Applicable Impact Height: Per standard requirements (typically 1.0–1.5 meters, depending on equipment category and UL standard)
Core Function: Delivers controlled impact to test enclosure integrity of electrical/electronic equipment; verifies no hazardous part exposure post-impact

Test Procedures:
1. Inspect the steel sphere for damage (e.g., dents, cracks) and confirm weight/diameter compliance.
2. Secure the DUT on a stable, non-slip surface—position it per UL standard guidelines.
3. Adjust the impact test setup to the specified height (e.g., 1.2 meters for IT equipment) and align the sphere with the target enclosure area (e.g., top, side panels).
4. Release the sphere freely (no additional force) to impact the DUT’s enclosure.
5. After impact, visually inspect the enclosure for cracks, deformation, or loose parts—check if internal hazardous components are exposed.
6. Record test results: pass if enclosure remains intact and no hazards are exposed; fail if damage/hazard exposure occurs.

Applications:
1. Impact testing of IT equipment enclosures (e.g., laptops, desktop monitors, servers) per UL 1989:2023 Figure 5.
2. Safety verification of audio/video equipment housings (e.g., speakers, TVs, projectors) compliant with UL 1418:2023 Clause 6.2.
3. Quality control for industrial control panel enclosures (e.g., factory automation units) during manufacturing.
4. Post-production impact testing of consumer electronics (e.g., tablets, portable speakers) to meet U.S. UL safety standards.
