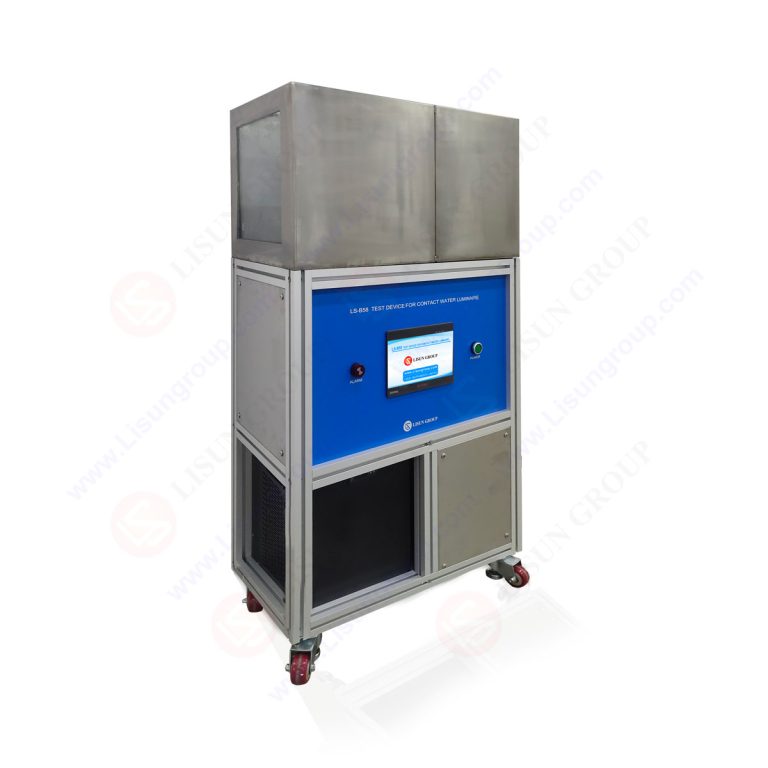

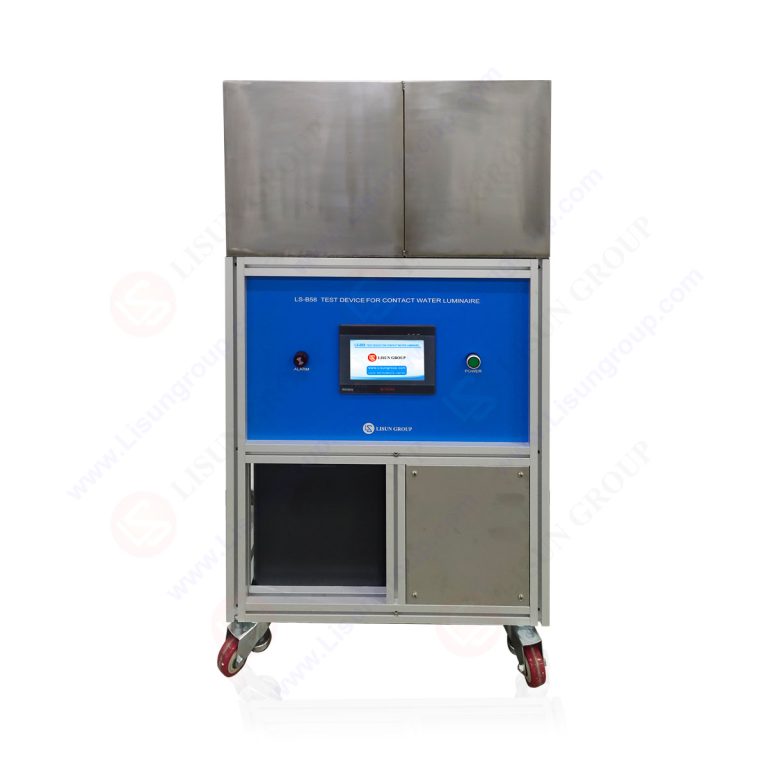

IEC 60598-2-18:2022 Clause 18.13 Figure 1 Test Device for Contact Water Luminaire

Product No: LS-B58

  • Specifications
  • Download

  • The LS-B58 Test Device for Contact Water Luminaire is a professional testing equipment specifically designed for pool lights that come into contact with water. It uses a precise temperature control system to regulate the water temperature and a circulating water mechanism to simulate the actual water environment of the lights during use, enabling durability and thermal testing. The device employs intelligent control to stably maintain the required water temperature conditions. Combined with a suitable installation structure and observation design, it allows users to easily monitor the testing process in real time, comprehensively verifying the performance and safety stability of the lights under water contact conditions. The overall design of the equipment is tailored to testing needs, ensuring reliable operation and ease of use, providing professional support for the quality inspection and compliance verification of water contact lighting fixtures.

    Standards:

    Standards No. Standards Name
    IEC 60598-2-18:2022 Safety of luminaires – Part 2-18: Particular requirements for luminaires for swimming pools and similar applications
    GB/T 7000.218-2023 灯具 第 2-18 部分：泳池及类似场所用灯具的特殊要求

    Specifications:

    Power Supply AC220~240V, 50Hz/60Hz, 1500W Max
    Control System 7-inch color touch screen and PLC control
    Water Chiller Temperature control range ≤300 liters (10℃ ~12℃ ), cooling capacity 600W.
    Heater 220V, 1kW, stainless steel heater
    Circulating Water Pump 40W, 220V
    Water Tank SUS304
    Liquid Level Control Liquid level sensor intelligent identification
    Temperature Monitoring 1 channel
    Lighting Installation Plate Overall dimensions: 250*250，maximum opening φ200mm (default is the opening size of 36W lamps. Note: other sizes can be customized)
    Glass Observation Window Opposite the lamp installation position is the observation window
    Lighting Sand Filling Space Left and right direction ≥250mm
     Overall Dimensions L*W*H=670*370*1300mm



    IEC 60598-2-18:2022 Clause 18.13 Figure 1
