Features

Always active

Standards No.	Standards Name
IEC 60335-1:2023	Household and similar electrical appliances – Safety – Part 1: General requirements
IEC 60601-1:2020	Medical electrical equipment – Part 1: General requirements for basic safety and essential performance
GB/T 4706.1-2024	家用和类似用途电器的安全第 1 部分：通用要求
GB 9706.1-2020	医用电气设备第 1 部分：基本安全和基本性能的通用要求

LISUN Models	WDT-2	WDT-2A	WDT-2B
Test Station	Single Station
Table Diameter	Ф600mm	Ф800mm	Ф1000mm
Angle Adjustment Range	0~30°（Adjustable）
Table Rotation Speed	1 rpm （Adjustable）
Carrying Capacity	80kg
Features	High-quality spray-coated steel plate with angle ruler to facilitate measuring the tilt angle

Goniophotometer Test System

Popular Solutions

Global

European Union

North America

Other regions

GET A QUOTE

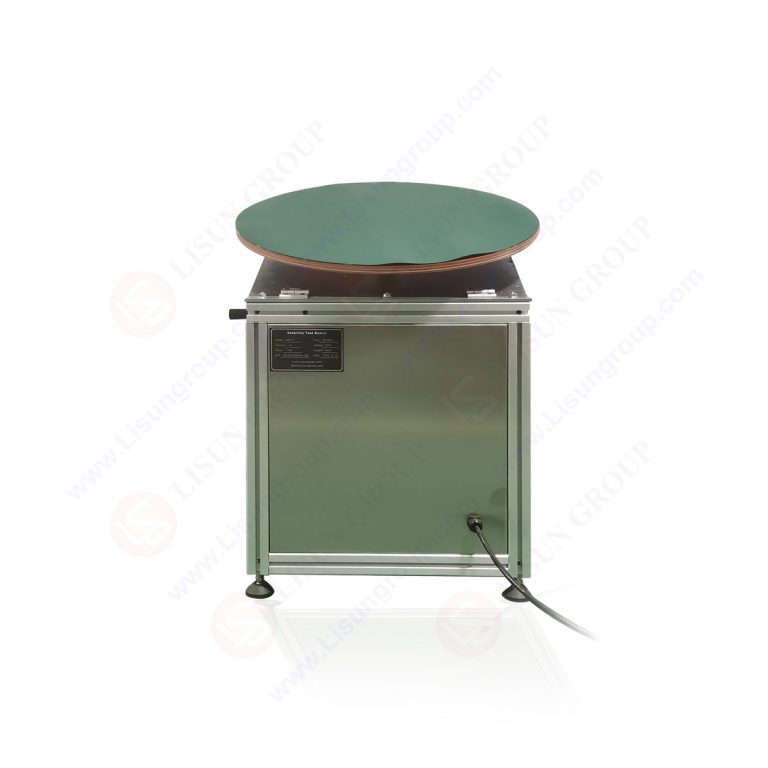

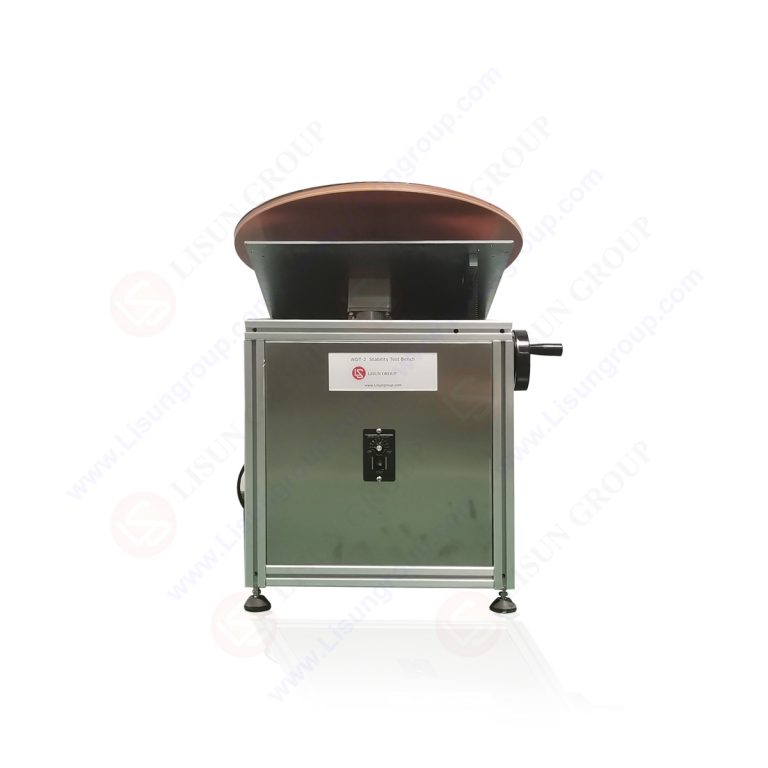

IEC 60335-1 Clause 20 | IEC 60601-1 Clause 9.4.2.1 Stability Test Bench

IEC 60335-1 Clause 20 | IEC 60601-1 Clause 9.4.2.1 Stability Test Bench - Introduction Video
