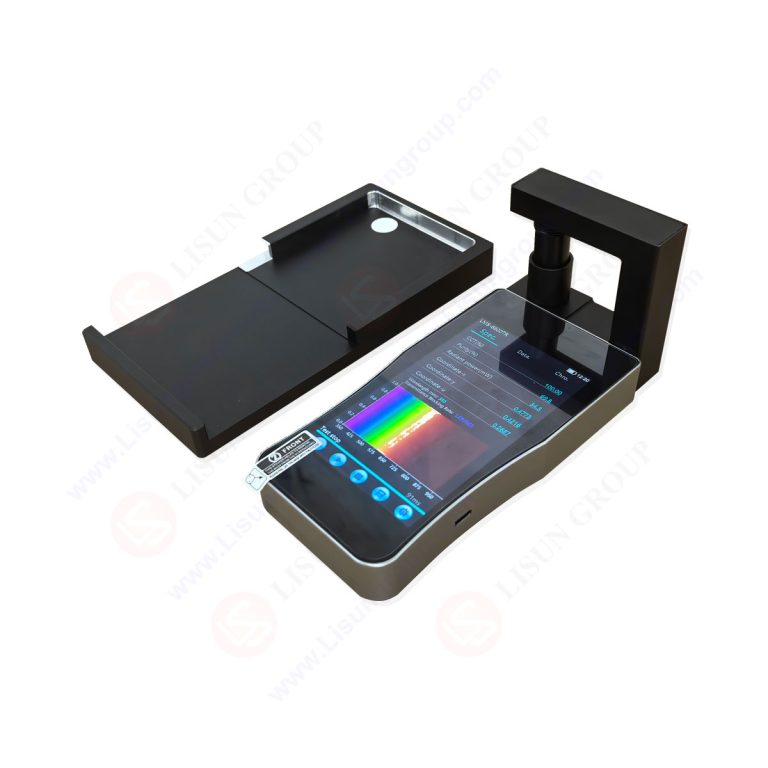

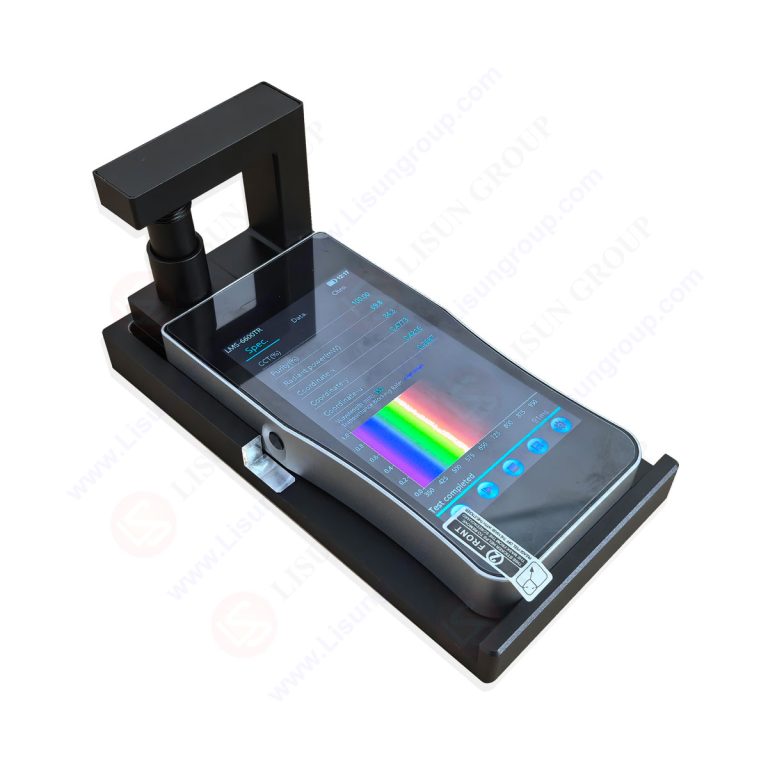

Spectrum, Transmittance and Reflectance Tester

The wavelength range of the LMS-6600TR is 350-950nm. It integrates the functions of spectrum, transmittance, saturation, reflectance, L, A, B, etc. It uses a 5-inch large screen to display measurement parameters and curves in real time. It is easy and quick to use and can directly test products such as materials and lenses.

Measurement:
Transmittance, Reflectance , Total Transmittance, Saturation (C*), Degree of Brightness (L*), Yellow-Blue Degree (a*),Red-Green Degree (b*), Absorbance, Tone (H*), illuminance (lux), E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Cut-off wavelength, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, , CCT Difference, SDCM Diagram, Spectrum Diagram

Standard:
CIE 177 “Color Rendering of White LED Light Sources”
CIE-13.3 “Method of Measuring and Specifying Colour Rendering Properties of Light Sources”
Optical-Engineering-49-3-033602 “Color quality Scale”
IEEE..”Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers”

Specification:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 000K ~ 100, 000K (±0.6%)
• Illuminance range: 5~200,000lx
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours
• Dimensions: 135mm*80mm*23mm
• Connect to PC via USB cable. English version software can run on Win7, Win8, Win10, Win11

Note 1: The LMS-6600T all specifications is the same as LMS-6600TR but has no Reflectance Test Function.
Note 2: The LMS-6600R all specifications is the same as LMS-6600TR but has no Transmittance Test Function.
