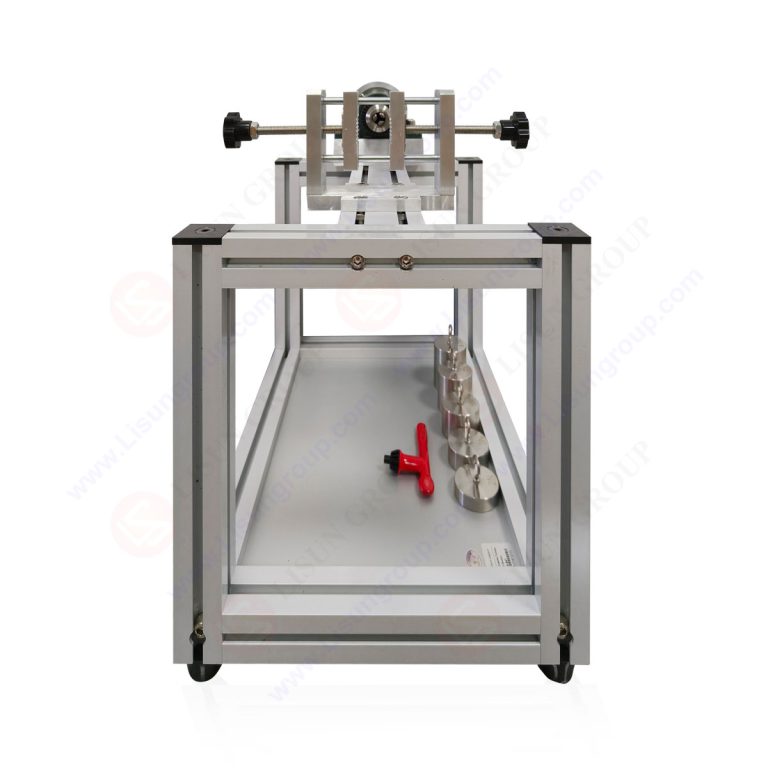

Product No: LS-B47
The LS-B47 Flexible Cables Torque Test Device is used to test flexible cables in plugs, removable sockets, fixed components with conductors, and their connectors. By applying tension and torque according to specifications, it examines the wear resistance of the flexible cable under the protection of the sheath, without the conductor terminals or ends being subjected to stresses such as twisting. At the same time, it verifies the displacement of the flexible cable and the integrity of the electrical connection after the test.
Standard:
| Standards | Standards Name |
| IEC 60884:2022 | Plugs and socket-outlets for household and similar purposes |
| GB/T 2099.1-2021 | 家用和类似用途插头插座 第 1 部分：通用要求 |
Specification:
| Torque Disc Diameter | 100mm |
| Weights | 2N, 3N, 5N, 7N, 8.5N, one for each, achieving 0.1, 0.15, 0.25, 0.35, 0.425N.m torque respectively |
IEC 60884-1:2022 Table 21
