Shear Load and Static Load Test Apparatus for Ground Recessed Luminaires
Shear Load and Static Load Test Apparatus for Ground Recessed Luminaires

GET A QUOTE

=

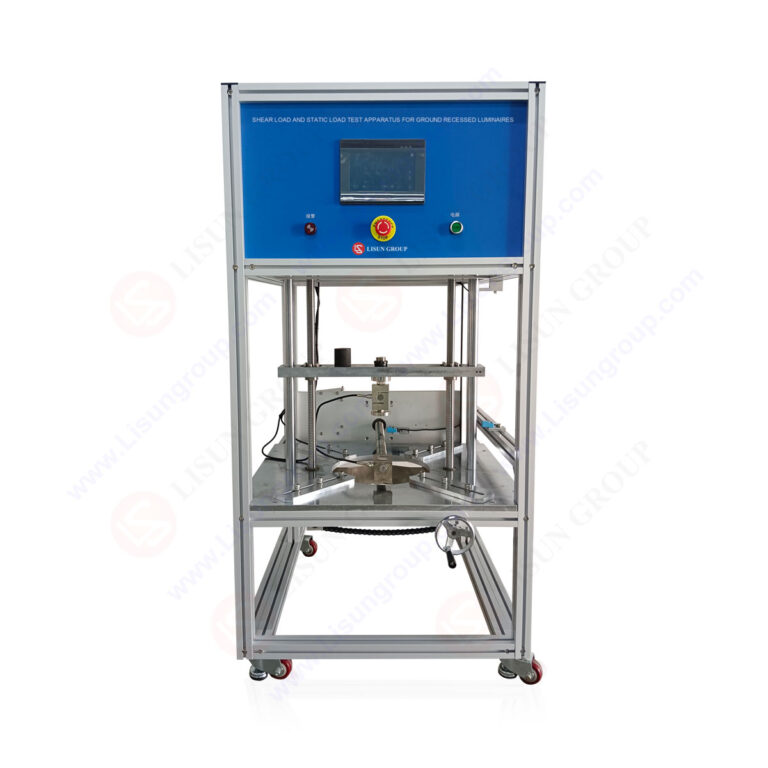

Shear Load and Static Load Test Apparatus for Ground Recessed Luminaires

Product No: LS-SLTAF24

  • Specifications

  • The LS-SLTAF24 Shear Load and Static Load Test Apparatus for Ground Recessed Luminaires is a professional device for testing the load-bearing performance of in-ground lights. Utilizing precise drive and control technology, it captures static load and shear load data through sensing elements, simulating the pressure conditions that in-ground lights may experience during actual use. This allows for comprehensive testing of the product’s static load resistance and shear load resistance. The machine’s structural design is tailored to the installation and usage characteristics of in-ground lights, ensuring stable and controllable operation. Through standardized testing procedures, it verifies whether in-ground lights meet relevant usage requirements, providing reliable support for the quality inspection of in-ground light products. It is easy to operate and provides accurate and reliable test results.

    Standards:

    Standards No. Standards Name
    IEC 60598-2-13:2016 Safety of luminaires – Part 2-13: Particular requirements for recessed luminaires
    GB 7000.213-2018 灯具 第 2-13 部分：嵌入式灯具的特殊要求

    Specification:

    Item Name Specification
    Equipment Power 220V/50Hz/60Hz 600VA
    Control System 7-inch color touch screen and PLC control timing pressurization
    Rated Output Static Pressure 2 tons
    Rated Output Shear Force 1 ton
    Underground Lamp Embedded Diameter 0～Φ300mm max.adjustable
    Static Load Application Speed 5000N/min.
    Loading Rubber Punch Φ50mm×50, Shore hardness 65±5
    Static Load Loading Timing Mode 0～9999 minutes can be preset, sound and light alarm when time is up
    Shear Load 20 Times Loading Count 0～9999 times can be preset, sound and light alarm when number is reached
    Dimensions L800mm*W800mm*H1250mm



    IEC 60598-2-13: 2016 Figure 2

    IEC 60598-2-13: 2016 Figure 4
