IEC 60884-1 Clause 30.1 Figure 41 | IEC 60811-3-1 Clause 8 | High Temperature Pressure Test Device

Product No: GNGPL-3610-2PA

Specifications
Download
Standards
Applications

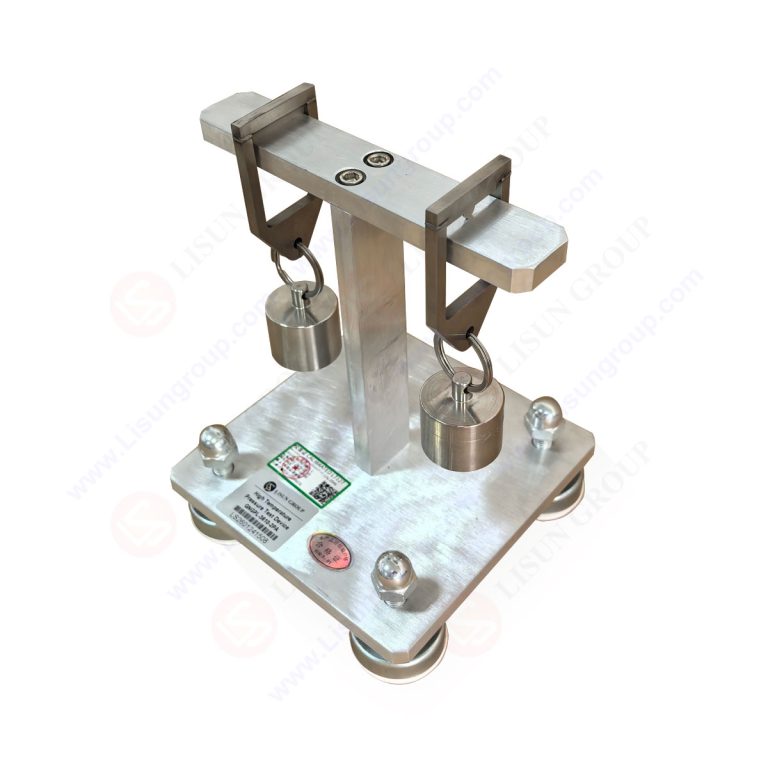

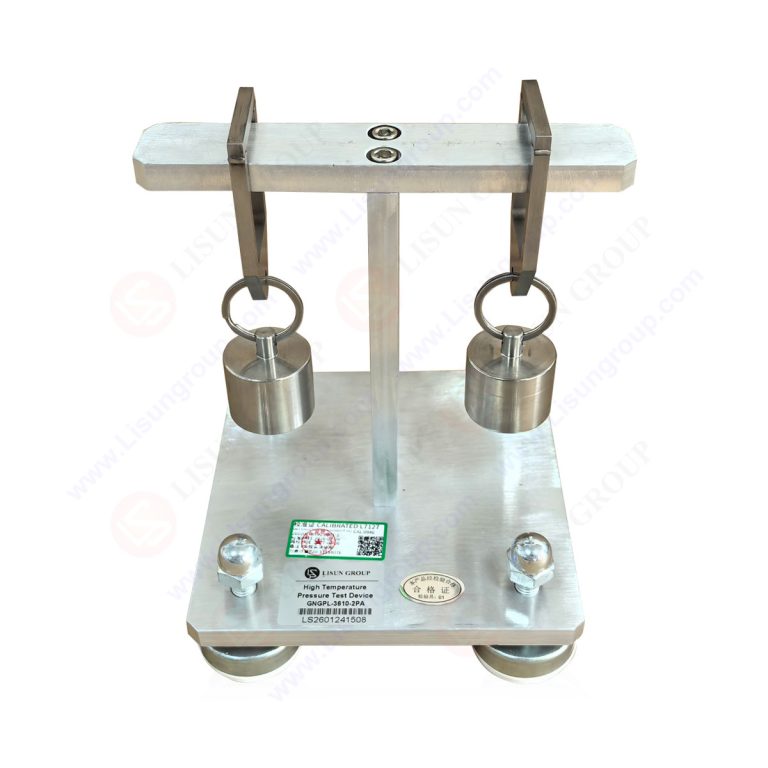

The GNGPL-3610-2PA High Temperature Pressure Test Device is a professional device for testing the heat resistance of insulation and sheathing components. By applying a stabilizing force to the sample using a specialized blade under specific high-temperature conditions, and measuring the indentation on the sample surface after the test cycle, it accurately assesses the structural stability and heat resistance of the sample under high-temperature conditions, providing objective and reliable testing support for the quality control of related products.

Standard:

Standards	Standards Name
IEC 60884-1:2022	Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
IEC 60811-3-1:2020	Electric and optical cables – Test methods for non-metallic materials – Part 3-1: Mechanical tests – Compression test at elevated temperature
GB/T 2099.1-2021	家用和类似用途插头插座第 1 部分：通用要求
GB/T 2951.31-2008	电缆和光缆绝缘和护套材料通用试验方法第 31 部分：高温压力试验

Specification:

LISUN Model	GNGPL-3610-2PA	GNGPL-3610-3PA
Working Station	2 working station	3 working station
Blade	1pc rectangular blade and 1pc Φ6 round blade	3pcs rectangular blades
Blade thickness	0.7±0.01mm
Weights	2.5N Weights (Contains the weight of the blade): 2pcs	1~1kg Weights: 3sets
Heating temperature	200℃ or temperature according to the cable specified (Work together with LISUN GW-225 High Temperature Chamber)
Test time	2h	D≤15mm test for 4h; D>15mm test for 6h
Cooling transition time	10s	Rapid cooling, cold water spray method can be used
Qualified judgment	Diren depth less than or equal to 50%	The median value of the indentation depth is less than or equal to 50% of the average value of the sample thickness
According to the standards	IEC 60884-1 Clause 30.1 Figure 41	IEC 60811-3-1 Clause 8 Figures 1, 2 and 3

IEC 60884-1 Figure 41 Test Apparatus for pres test at high temperature
