CEE 7 Gauges for Central and Eastern Europe Standard Plugs and Socket Outlets
CEE 7 Gauges for Central and Eastern Europe Standard Plugs and Socket Outlets

GET A QUOTE

=

CEE 7 Gauges for Central and Eastern Europe Standard Plugs and Socket Outlets

Product No: GNGPL-CEE7

  • Specifications
  • Download

  • Application:
    This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to CEE7 ( CEE7/7 ) standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.

    Feature:
    Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
    Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

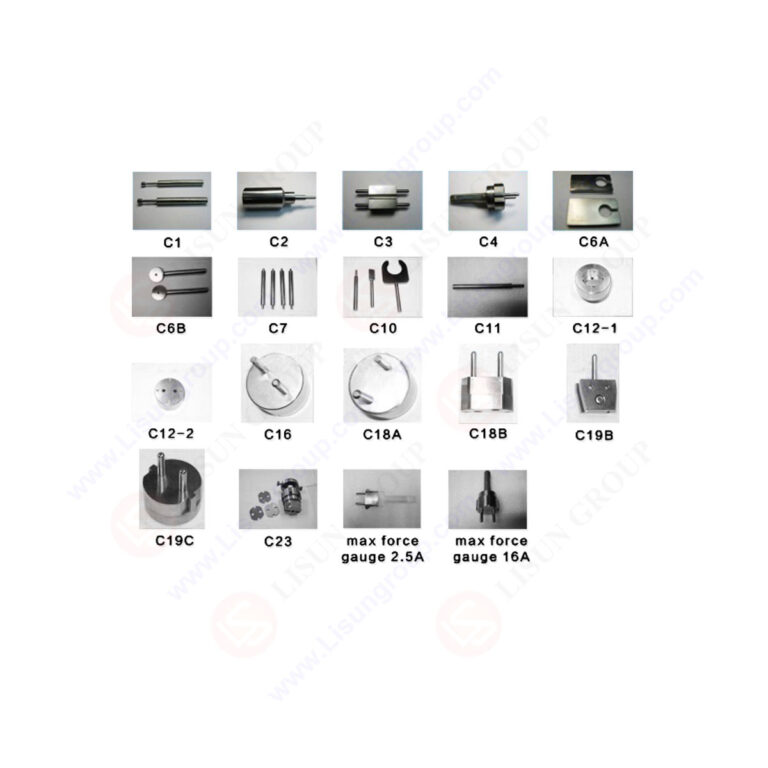

    CEE 7 Socket-outlets and Plug Gauges

    LISUN Model Product Specifications
    GNGPL-57C1 10/16A 250V two-pole socket-outlets Gauges C1 of CEE7 for size of entry holes for plug pins
    GNGPL-57C2 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauges C2 of CEE7 for minimum opening of contact tubes
    GNGPL-57C3 10/16A 250V two-pole socket-outlets Gauge C3 of CEE7 for acceptance of two-pole plugs
    GNGPL-57C4 10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge C4 of CEE7 for acceptance of two-pole plugs with side earthing contacts
    GNGPL-57C6 10/16A 250V two-pole fixed socket-outlets Gauges C6 of CEE7 for fixing holes or slots
    GNGPL-57C7 10/16A 250V two-pole socket-outlets Gauges C7 of CEE7 for distance to point of first contact
    GNGPL-57C8 10/16A 250V two-pole socket-outlets Gauge C8 of CEE7 for wiring channel
    GNGPL-57C9 2.5A 250V and 10/16A 250V two-pole plugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact Gauges C9 of CEE7 for pin diameter
    GNGPL-57C10 10/16A 250Vtwo-pole plugs Gauges C10 of CEE7 for pin spacing
    GNGPL-57C11 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauge C11 of CEE7 for maximum opening of contact tubes
    GNGPL-57C12 10/16A 250V two-pole plugs with side earthing-contacts Gauge C12 of CEE7 for interchange ability
    GNGPL-57C13 2.5A 250V two-pole plugs for class ii appliances Gauge C13  for interchange ability
    GNGPL-57C14 10/16A 250V two-pole flush-type socket-outlets for screw fixing Gauge C14 for dimensions of mounting boxes
    GNGPL-57C15 10/16A 250V two-pole plugs without earthing contact Gauge C15 for non-interchange ability with two-pole plugs with earthing contact
    GNGPL-57C16 10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge for non-acceptance of two-pole plugs wihout earthing contact of CEE7 C16
    GNGPL-57C18 10/16A 250V two-pole socket-outlets without earthing contact Gauge for checking impossibility of single-pole insertion of plugs CEE7 C18
    GNGPL-57C19AB 2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets CEE7/C19A.B
    GNGPL-57C20 Device for testing non-solid pins  CEE7 C20
    GNGPL-57C21 Device for checking the resistance to lateral strain of 10/16A 250V two-pole fixed socket-outlets with with CEE7 C21
    GNGPL-57C22 Splash apparatus CEE7 C22
    GNGPL-57C23 Device for measuring the contact pressure of earthing contacts of 10/16A 250V two-pole socket-outlets with side earthing-contacts with with CEE7 C23
    GNGPL-57C26 Apparatus for checking the withdrawal force  CEE7 C26
    GNGPL-57C27 Apparatus for testing the cord anchorage  CEE7 C27



    Standard:
    IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose”
