IEC 60884-1 Clause 24.10 Figure 32 Multi-Movable socket – Outlets Mechanical Strength Testing Device

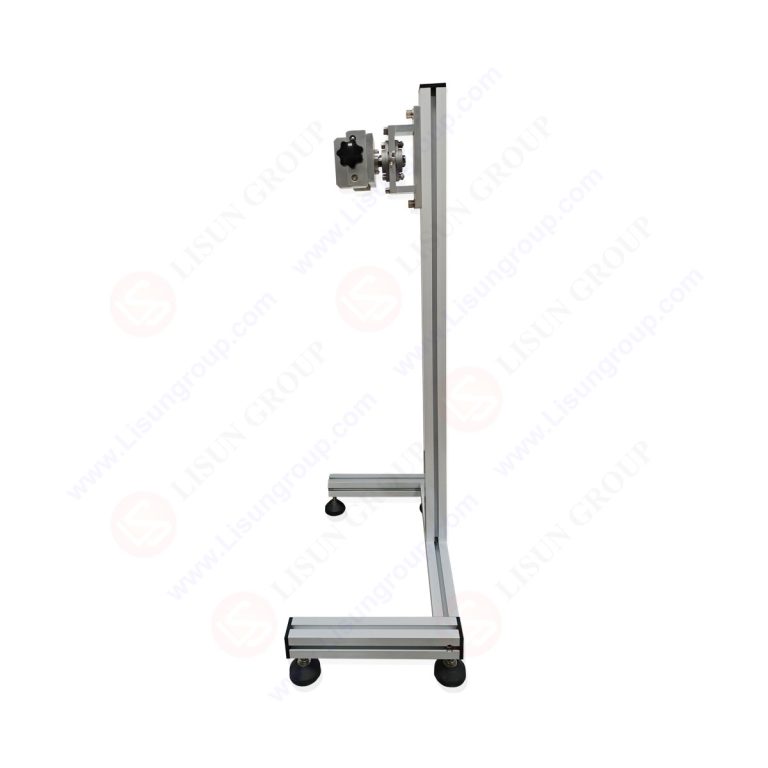

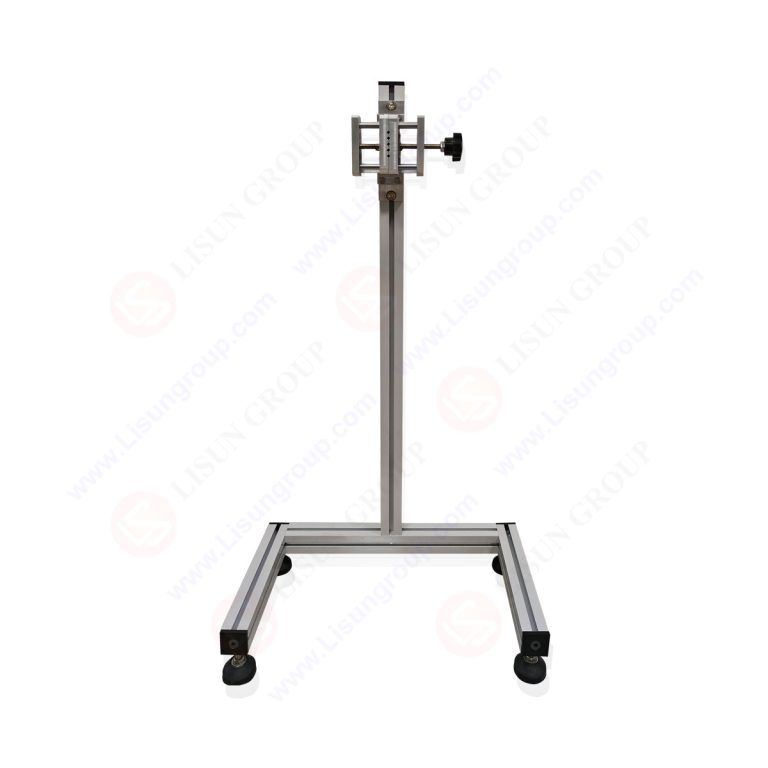

LS-B11 Multi-Movable socket – Outlets Mechanical Strength Testing Device is specifically designed for detachable multi-position movable sockets to test their mechanical strength performance after the flexible cable is installed. The device fixes the free end of the flexible cable, keeping it horizontal before releasing the sample and allowing it to fall onto a designated surface. During multiple drops, the cable is rotated at a specific angle to simulate stress scenarios that may be encountered in actual use. This verifies whether the sample exhibits any loosening or detachment of components, thus providing reliable support for product quality verification.

Standard:

Specification:
• Falling height: 750mm
• Distance from fixed end: 2250mm
• The number of drops: 8 times
• Rotating device: 45 ° points, eight directions can rotate
• Falling method: manually release
• Dimensions: 490*270*900mm(L*W*H)

Applications:
1. Mechanical strength testing of detachable multi-outlet portable sockets after assembling flexible cables
2. Factory quality inspection of household multi-outlet portable sockets
3. Mechanical strength performance testing of industrial multi-outlet portable sockets
4. Mechanical strength verification during the product development stage of multi-outlet portable sockets
5. Quality control testing of multi-outlet portable sockets equipped with electrical equipment
6. Compliance testing of multi-outlet portable sockets by third-party testing institutions
