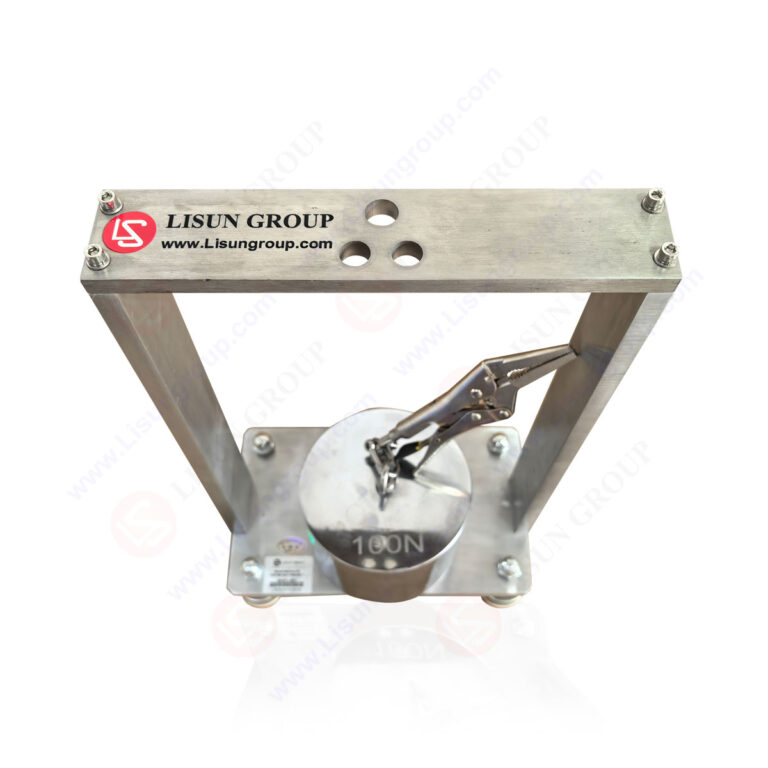

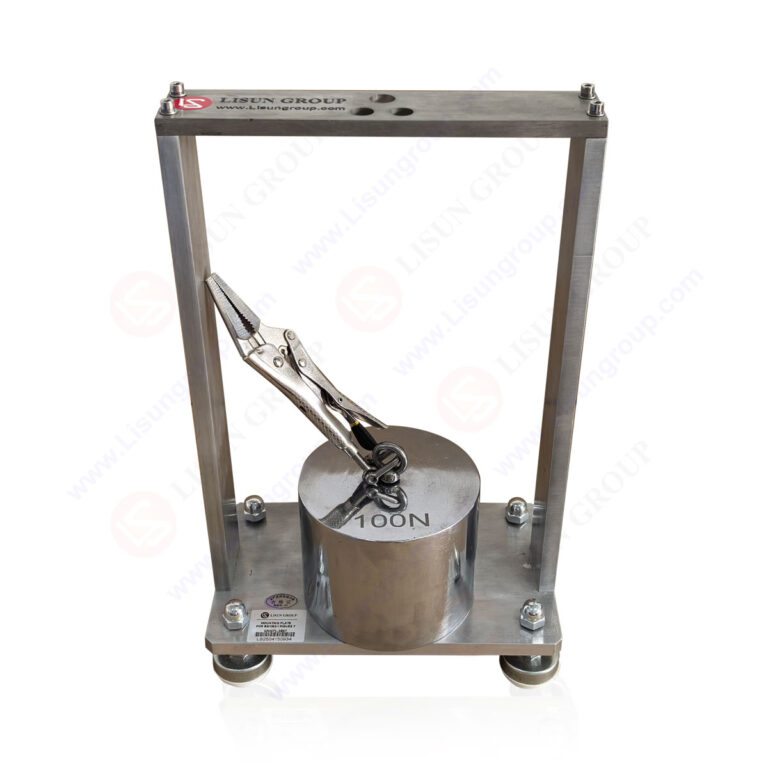

Mounting Plate of BS1363-1 Figure 7

This Mounting Plate of BS1363-1 Figure 7 is precision-engineered to fully align with the specifications outlined in BS 1363-1 Figure 7, serving as a specialized tool for verifying the dimensional accuracy and mounting compatibility of related electrical components. It ensures that products adhere to the rigorous standards for 13 A plugs, socket-outlets, and associated units, supporting reliable quality control and compliance verification in manufacturing and testing processes.

Specifications:
• Complies with the exact requirements of BS 1363-1 Figure 7 standard
• Dimensionally calibrated with key measurements in millimetres (including 15.5mm, 14.5mm, 24mm, 20mm)
• Precision-manufactured for consistent and accurate mounting verification
• Designed for compatibility with 13 A plug and socket-outlet related components
• Engineered to support reliable dimensional conformity testing

Test Procedures:
• Prepare the test component (relevant to 13 A plugs or socket-outlets) and ensure it is free from damage, deformation, or contamination.
• Secure the mounting plate on a stable, flat testing surface to maintain measurement precision.
• Align the test component with the designated mounting points and dimensional markers on the plate.
• Verify the component’s fit, positioning, and dimensional compliance against the plate’s calibrated features.
• Check if all critical dimensions of the component match the specifications defined in BS 1363-1 Figure 7.
• Record whether the component meets the standard requirements based on the alignment and fit with the mounting plate.
• Document the test results, noting any deviations from the specified dimensions if applicable.

Applications:
• Dimensional accuracy testing and mounting verification of 13 A plugs and socket-outlets in manufacturing.
• Quality control during production of electrical components requiring compliance with BS 1363-1 standards.
• R&D testing for product design validation of plug and socket-outlet mounting structures.
• Conformity assessment by certification bodies and third-party testing laboratories.
• Routine inspection of electrical connection units to ensure consistent mounting compatibility and standard compliance.

Mounting plate of BS1363-1 Figure 7
