Product No: LS-B40

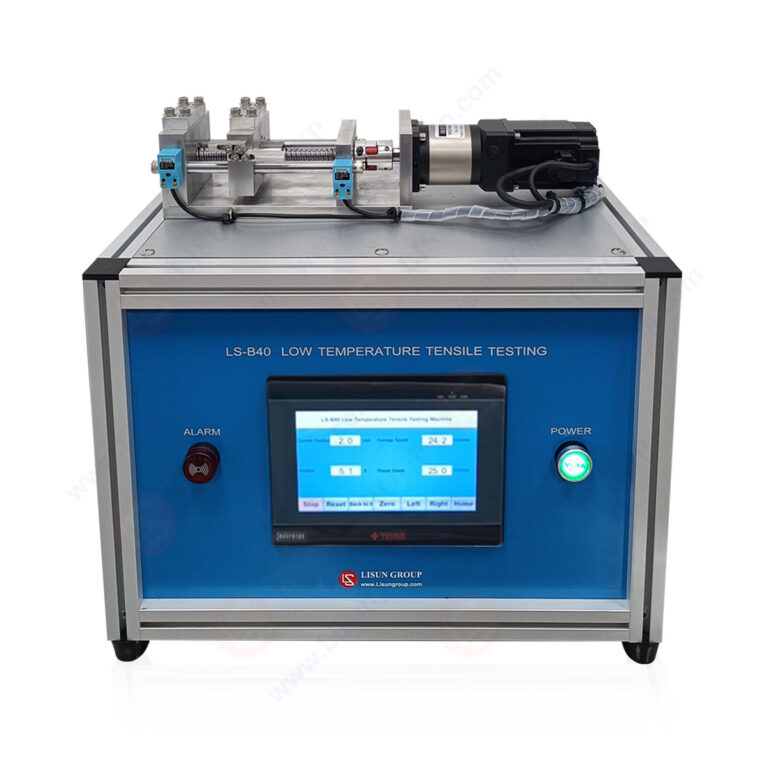

The LS-B40 Low Temperature Tensile Testing Machine is a specialized device designed for testing the low-temperature tensile properties of cable insulation and sheathing. This equipment requires the use of a low-temperature environment apparatus. Prepared specimens are held in place by specific clamps, and tensile force is applied to the specimens at a stable tensile speed. Key indicators such as elongation of the specimens under low-temperature conditions are measured to evaluate the tensile resistance of cable insulation and sheathing materials in low-temperature environments, ensuring that the tested materials and related cable products meet the corresponding technical specifications.
Standards:
| Standards | Standards Name |
| IEC 60811-1-4:2002 | Insulated and sheathed cables and flexible cords – Part 1-4: Methods of test – Low temperature tests |
| GB/T 2951.14-2008 | 电缆和光缆绝缘和护套材料通用试验方法 第 14 部分：通用试验方法 低温拉伸试验 |
| GB/T 2951.11-2008 | 电缆和光缆绝缘和护套材料通用试验方法 第 11 部分：通用试验方法 厚度和外形尺寸测量 机械性能试验 |
Specifications：
| Power Supply Voltage | 220~240V(AC), 50/60Hz |
| Displacement Measurement | Digital display ±1mm |
| Jaw Type | Non-self-tightening |
| Tensile Speed | 25±5mm/min |
| Sample Specification | Type I and II dumbbell specimens |
P.S. The LS-B40 Low Temperature Tensile Testing Machine need to work with LISUN GDJW-100A (Interal Size 40*40*60cm) High and Low Temperature Chamber
Applications:
1. Low-temperature tensile property testing of cable insulation materials
2. Low-temperature tensile property testing of cable sheath materials
3. Low-temperature elongation assessment of polyethylene (PE) insulation
4. Low-temperature tensile property verification of polypropylene (PP) insulation
IEC 60811-1-4 Clause 8.3
IEC 60811-1-4 Clause 8.4
LISUN's cable and wire test solutions are essential for verifying compliance with international...
