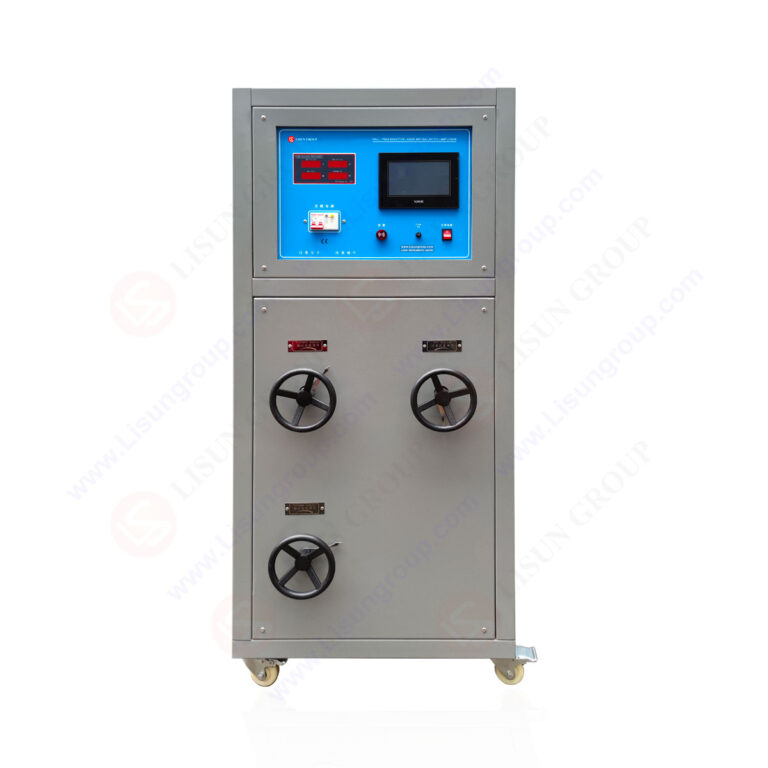

Product No: DFX-20
The DFX-20 Externally Ballasted Lamp Test Load Cabinet (Resistive, Inductive, and Capacitive Load cabinet) can simulate different types of resistive, inductive, and capacitive load conditions. By adjusting the output electrical parameters, it provides a suitable operating environment for relevant electrical accessories, thereby verifying whether the performance of the electrical accessories meets the standards under the corresponding loads. The equipment has a built-in electrical parameter monitoring module that can acquire key data such as AC voltage, current, power, and power factor in real time. It also has a preset counting function, which can set the number of tests according to testing needs, meeting the standardized load test operation procedures. It can also be used in conjunction with corresponding life testing and bending testing equipment to form a complete electrical accessory performance testing solution.
Standards:
| Standards | Standards Name |
| IEC 60669-1:2017 | Switches for household and similar fixed electrical installations – Part 1: General requirements |
| IEC 60884-1:2022 | Plugs and socket-outlets for household and similar purposes – Part 1: General requirements |
| IEC 60898-1:2019 | Circuit breakers for overcurrent protection for household and similar installations – Part 1: General rules |
| GB/T 16915.1-2024 | 家用和类似用途固定式电气装置的开关 第 1 部分：通用要求 |
| GB/T 2099.1-2021 | 家用和类似用途插头插座 第 1 部分：通用要求 |
| GB/T 10963.1-2020 | 家用和类似用途断路器 第 1 部分：通用要求 |
Specification:
• Output modes: Resistive, Inductive and Capacitive
• Voltage output range: 0~275V; Accuracy: 1V
• Power Factor PF: Adjustable from 0.30 to 0.98 when current is below 16A; Adjustable from 0.60 to 0.98 when current is above 16A; Resolution of Power factor resolution is 0.01
• Built-in digital power meter; It can measuring AC voltage, current, power, and power factor; Accuracy: ± (0.4% of reading + 0.1% of range + 1 digit)
• Load A: Capacitors are equipped with two sets, one set is 70uF and the other set is 140uF; Load B: Capacitance is 7.3uF, inductance is 0.5H.
• Counter: 0～999,999 times

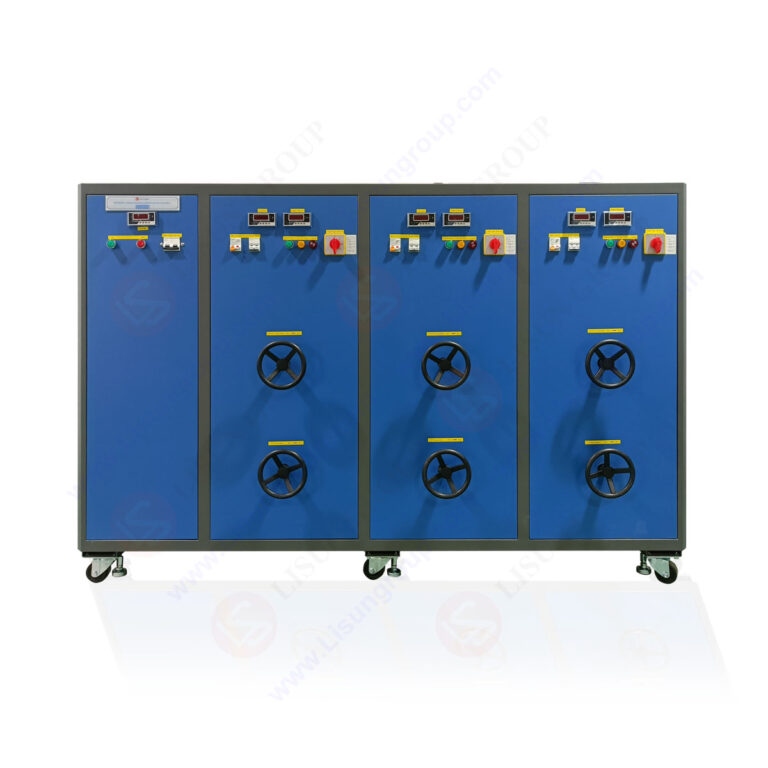

| LISUN Model | DFX-20 | DFX-20-3CH | DFX-40 | DFX-60 | DFX-80 |
| Current output range | 0~20A/Each channel | 0~40A | 0~60A | 0~80A | |
| Current output accuracy | 0.1A | ||||
| Output Channel | Single output | 3 Channels output | Single output | ||
| Input Voltage / Frequency | AC 220~240V, 50Hz/60Hz | ||||
| Input Current | 40A | 100A | 80A | 120A | 160A |
Application：DFX-20 can work together with CZKS-3 or CZKS-6 Six Position Plug Socket Switch Life Tester, and it also can work with SW-6 Power Cord Bending Tester.
IEC60669-1 Test for switches intended for inductive loads
IEC60669-1 19.2 Test for switches intended for externally ballasted lamp loads
IEC 60669-1 Figure 12a – Circult diagrams for testing switches for use on externally ballasted lamp loads
