Product No: DJTJ-1

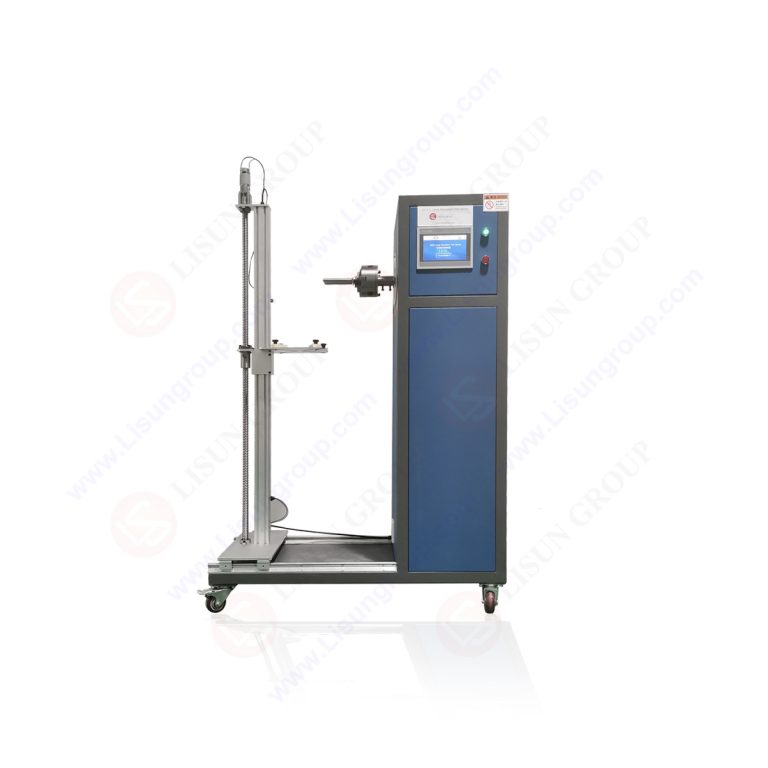

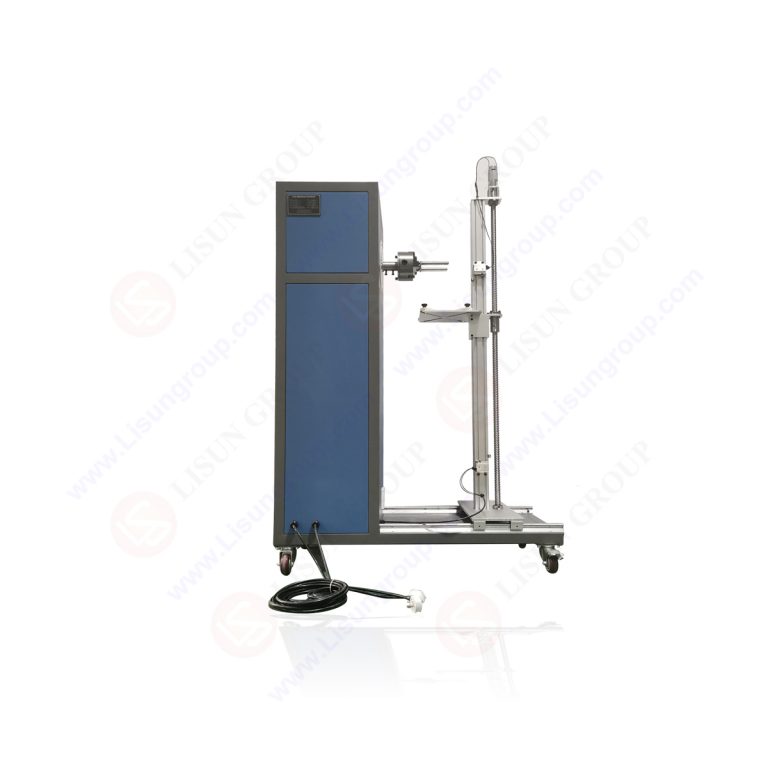

The DJTJ-1 IEC 60598-1:2024 Clause 4.14.3, the Lamp Adjustment Test Device, is a specialized device designed for the safety performance testing of adjustable lamp devices. It employs a PLC intelligent integrated control system combined with a human-machine interface, along with a motor drive system, to achieve precise control and convenient operation during the testing process. The device features a flexible mechanical clamping structure, allowing adjustment of the clamping position according to the specifications of different lamp samples, ensuring the stability and adaptability of the clamping. It can simulate the actual use scenarios of lamp adjustment devices, repeatedly testing the lamp’s movable joints, lifting devices, and adjustment brackets through adjustable rotation angles and test rates. The test focuses on verifying whether the flexible wire or cable is subjected to pressure, clamping, damage, or excessive twisting during the adjustment process, providing a scientific basis for the quality compliance of the lamp adjustment device.
Standards:
| Standards No. | Standards Names |
| IEC 60598-1:2024 | Luminaires – Part 1: General requirements and tests |
| GB 7000.1-2023 | 灯具 第 1 部分：一般要求与试验 |
Specification:
| Power Supply | AC220~240V, 50/60Hz |
| Electrical Control Method | PLC intelligent integrated control, 7-inch human-machine touch interface operation |
| Driving Method | Motor Drive |
| Sample Clamping Method | Mechanical clamping, adjustable clamping point position |
| Rotation Angle | 0~360° adjustable, can rotate on one side or swing on both sides |
| Test Rate | 0~10 times/min (<600 times/h) |
| Number of Trials | 0~999,999 can be preset |
IEC 60598-1: 2020 Clause 4.14.3
