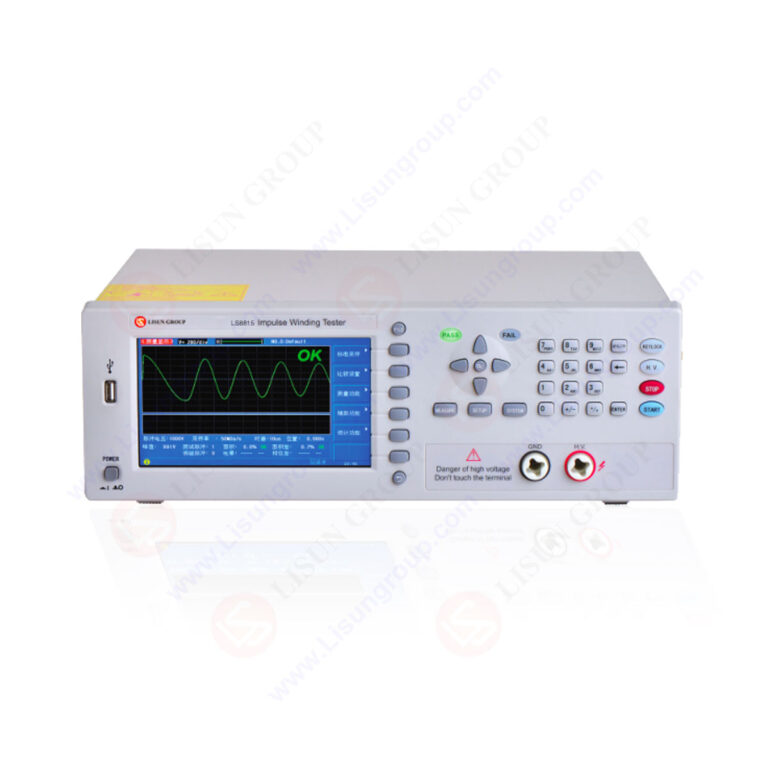

Impulse Winding Tester

Product No: LS8815

  • Specifications
  • Technology

  • The LS8815 Impulse Winding Tester are specially designed to meet the testing needs of winding components. Their working principle is to utilize a tiny high-voltage charged capacitor (with low testing energy) to form an RLC parallel resonance with the coil under test. Through the oscillating attenuation waveform, combined with the precision sampling, processing and analysis technology with a speed of up to 100Msps (200Msps customizable), they can accurately detect insulation defects of the coil itself, including inter-turn short circuits, inter-layer short circuits, and reduced insulation performance. This helps component manufacturers and users more effectively control product quality.

    The series of instruments feature fast measurement speed and good repeatability of test waveforms, and can be widely applied to components wound with enameled wires, such as motors, power frequency transformers, relays, switching power supply transformers, and degaussing coils.

    Specifications:

    LISUN Model LS8815S-8 LS8815-5KV LS8815-3KV
    Output Pulse Voltage 100V～5000V; 10V step; 5%±10V 100V～3000V; 10V step; 5%±10V
    Test Channel 8 Channals Test Single Channal Test
    Inductance Measurement Range >10μH
    Maximum Pulse Energy 0.25J
    Display Content Zoom in display, set parameters, standard and test waveforms, compare results, file information, etc.
    Waveform Sampling Sampling rate：100MSa/s～100kSa/s, Total 10 file resolution: 8bits
    Sampling point: 6500bytes
    Standard Wave Sampling Continuous cycle, single cycle, single sample (up to 32 sample averages)
    Input Impedance 10MΩ
    Measurement Speed Max. 15 times/second
    Number of Pulses Test pulse: 1~32 times programmable; degaussing pulse: 0~16 times programmable
    Display Waveform Measurement Voltage, time, frequency
    Trigger Mode Internal; Manual(including foot control); External; Bus
    Comparison Mode AreaSize Comparison; DiffZone Comparison; Corona Comparison; PhaseDiff Comparison
    Area Repeatability Accuracy ±1%
    Area Difference Repeatability Accuracy ±1%
    Judgment Output PASS, FAIL, LED display, Buzzer alarm
    Alarm Volume Selection Long treble, long bass, single short, double short, off
    Memorizer Internal: 200 groups of files; External USB flash drive: 500 groups of files
    Interface HANDLER（START，STOP，PASS，NG，BUSY，EOC）、RS232C、IEEE488（Optional）、USB DEVICE、USBHOST
