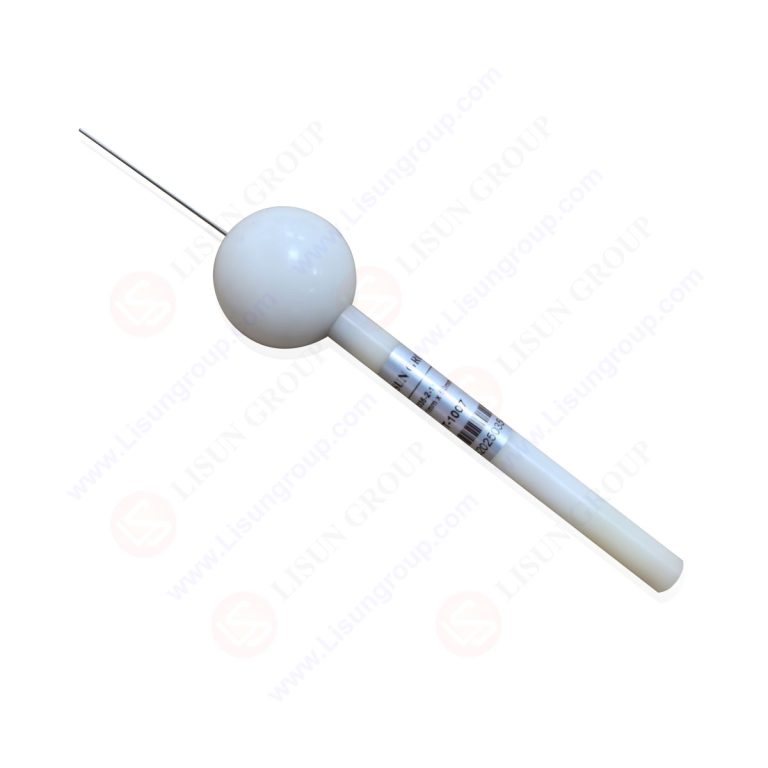

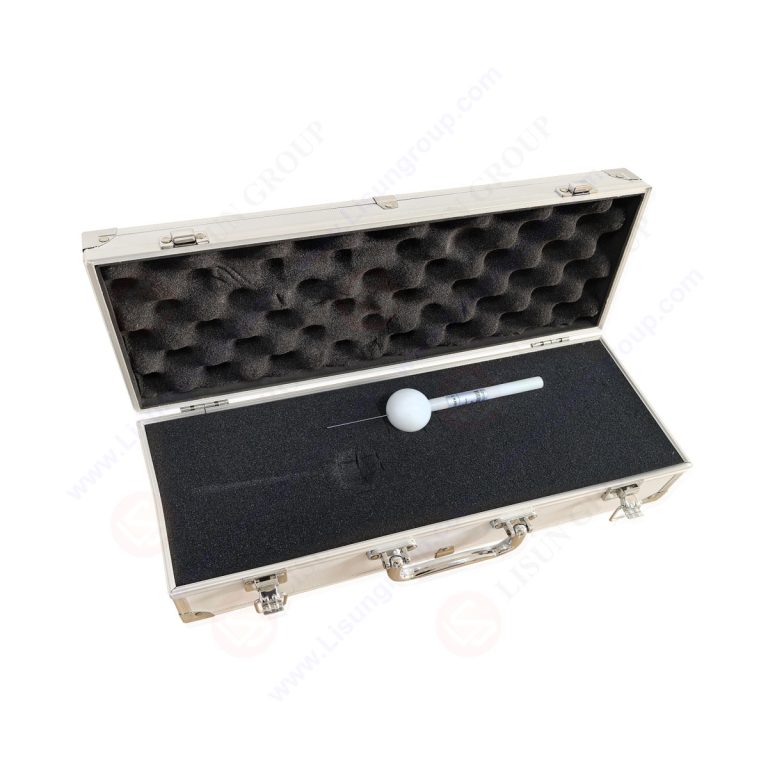

IEC/EN 60335-2-11 Test Nails 1mm x 50mm

The IEC/EN60335-2-11 Clause 19.102 Test Nails (1mm x 50mm) are specialized tools for short-circuit testing of electrical appliances with drum holes. Designed to simulate accidental contact with live parts, they feature a 1mm diameter (for accessing narrow gaps) and 50mm length (to reach deep components), ensuring compliance with safety standards. Made of high-conductivity metal (for reliable short-circuit simulation), they’re used to test if appliances with accessible live parts (via IEC 61032 Test Probe C) can withstand short-circuit conditions, supporting safe operation with dry textile materials.

Specifications:
• Physical Dimensions Diameter: 1mm (±0.05mm tolerance); Length: 50mm (±0.2mm tolerance)
•  Material: High-conductivity brass (plated with nickel for corrosion resistance)
•  Conductivity: Electrical conductivity ≥ 15 S/m (ensures effective short-circuit simulation)
• Applicable Probe : Compatible with IEC 61032 Test Probe C (for pre-verifying access to live parts)
• Test Medium Requirement: Designed for use with dry textile material (per standard operation conditions)
•  Structural Feature: Smooth, burr-free tip (prevents damage to appliance components during testing)

Test Procedures:
•  Inspect the test nail for damage (e.g., bending, corrosion) and confirm dimensions meet specs.
• Power off the appliance (e.g., tumble dryer) and place dry textile material inside as required.
• Use IEC 61032 Test Probe C to identify drum holes that allow access to underlying live parts.
• Insert the 1mm x 50mm test nail through the identified hole to the most unfavorable short-circuit point (between live parts or live parts and metal).
• Power on the appliance and operate it per Clause 11 of IEC 60335-2-11; monitor for short-circuit safety performance.
• Power off after testing, remove the nail, and record whether the appliance withstood the short-circuit.

Applications:
• Short-circuit testing of domestic tumble dryers (to verify safety when live parts under drum holes are accessed).
• Compliance checks for industrial centrifugal extractors (ensuring they withstand short-circuit conditions per IEC 60335-2-11).
• Quality control for drum-type laundry appliances during production (preventing unsafe units from entering the market).
• Third-party certification testing (e.g., CE, GS) for appliances requiring adherence to EN 60335-2-11 Clause 19.102.
• Post-repair safety verification of tumble dryers/extractors (confirming no new access risks to live parts exist).
