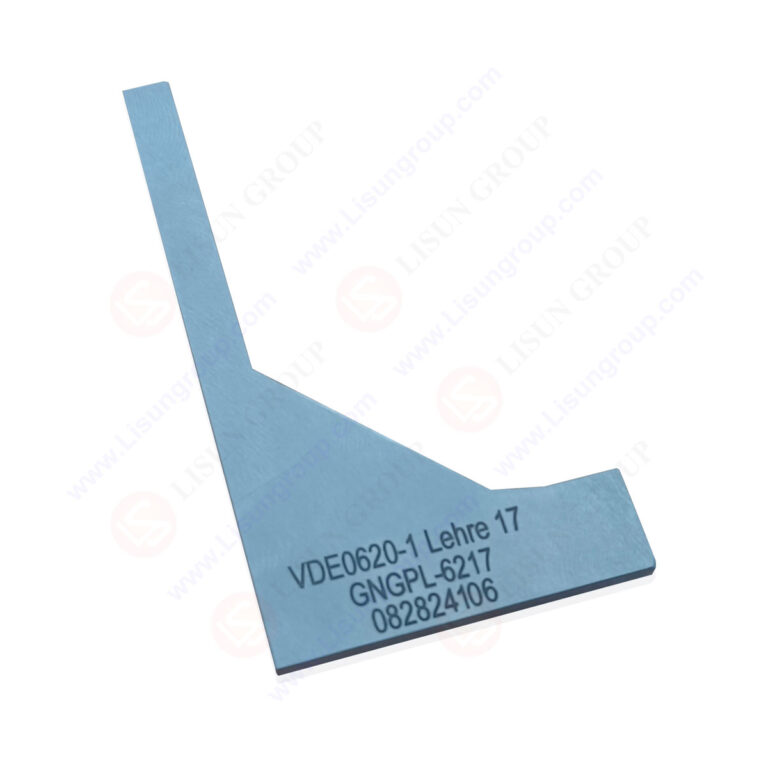

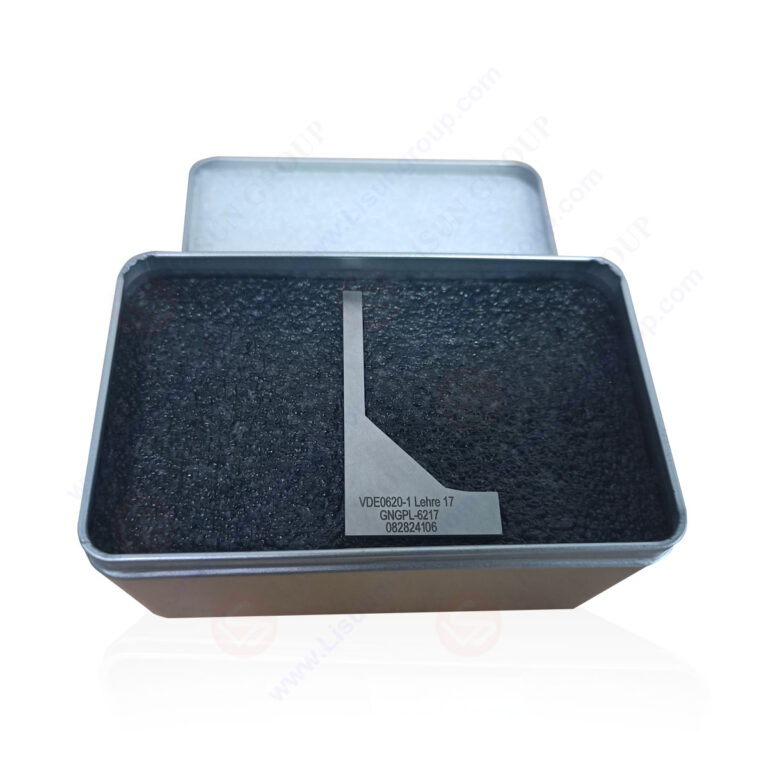

VDE 0620-1 Lehre 17 Gauge for Testing Outline of Caps and Covers

This VDE 0620-1 Lehre 17 Gauge for Testing Outline of Caps and Covers is meticulously engineered and manufactured in strict compliance with the relevant requirements of the VDE 0620-1 standard (including 2010 and 2021-02 versions). It serves as a critical tool for verifying whether the structure and dimensions of plugs and sockets meet the specified criteria of the VDE 0620-1 standard, ensuring the compatibility, safety, and compliance of related electrical products.

Specifications:
• Complies with DIN VDE 0620-1 standard (covering Lehre 17 requirements)
• Adheres to VDE 0620-1:2010 and VDE 0620-1:2021-02 versions
• Features precise angular tolerances: 45°±5′ and 10°±5′ 30 min.
• Includes dimensional tolerance of 10±1 for specific testing surfaces
• Engineered for testing the outline of caps and covers of plugs and sockets

Test Procedures:
• Prepare the test sample (cap or cover of the plug/socket) and ensure it is free from damage, deformation, or contamination that may affect test results.
• Position the test gauge on a stable, flat surface to maintain measurement accuracy.
• Align the sample with the designated testing surfaces (Seite A, Seite B, Seite C) of the gauge according to the standard’s requirements.
• Verify the fit between the sample’s outline and the gauge’s testing contours to check for conformity.
• Record whether the sample meets the dimensional and structural requirements specified by the VDE 0620-1 standard based on the fit with the gauge.
• Document the test results, including any deviations from the standard if applicable.

Applications:
• Quality inspection of caps and covers for household plugs and sockets in the electronics industry.
• Compliance testing of electrical appliance accessories to ensure adherence to VDE 0620-1 standards.
• R&D and production quality control in plug and socket manufacturing enterprises.
• Conformity assessment by certification bodies and testing laboratories for electrical products.
• Quality verification in industries producing similar electrical connection accessories requiring VDE 0620-1 compliance.
