Gauges for Depth of Contact Tests of AS/NZS 3112 Figure 3.1

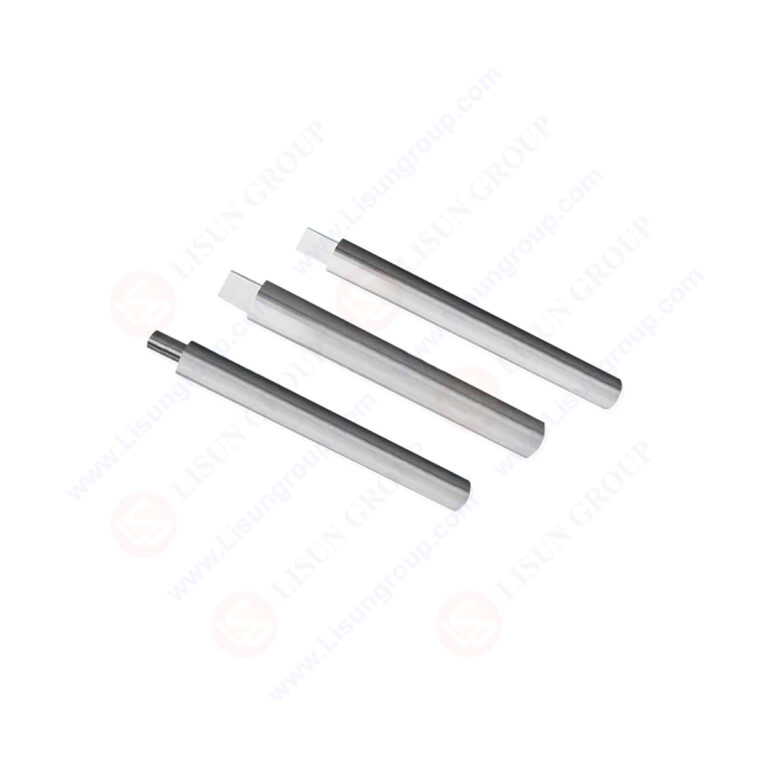

Gauges for Depth of Contact Tests of AS/NZS 3112 Figure 3.1 (GNGPL-3131) and gauges for depth of non-contact tests (GNGPL-3131A) are specifically designed to verify whether the structure and size of plugs and sockets complying with Australian/New Zealand standards meet the requirements of AS/NZS 3112. It features precise manufacturing that adheres to strict standard specifications, ensuring reliable performance in relevant testing scenarios.

Specifications:
• Dimensions and tolerances comply with AS/NZS 3112 standards
• Material hardness of over 50HRC
• Small thermal expansion coefficient of the material
• Stable and reliable dimensional accuracy
• Surface roughness meets standard requirements

Test Procedures:
• Prepare the plug or socket sample that needs to be tested to ensure it is free from damage or deformation.
• Confirm that the test gauge is clean and free from debris that may affect measurement results.
• Align the gauge with the contact area of the sample in accordance with the requirements of AS/NZS 3112 Figure 3.1.
• Insert the gauge into the specified position of the sample smoothly and evenly.
• Check and record whether the contact depth of the sample matches the dimensional requirements indicated by the gauge.
• Determine if the sample conforms to AS/NZS 3112 standards based on the test results.

Applications:
• Testing and inspection of plugs and sockets manufactured in accordance with AS/NZS 3112 standards
• Quality control processes in the electronics industry
• Compliance verification in the electrical appliance manufacturing sector
• R&D testing for plug and socket product development
• Quality inspection in related industries producing plug and socket accessories

Gauges for Depth of Contact Tests of AS/NZS 3112 Figure 3.1
