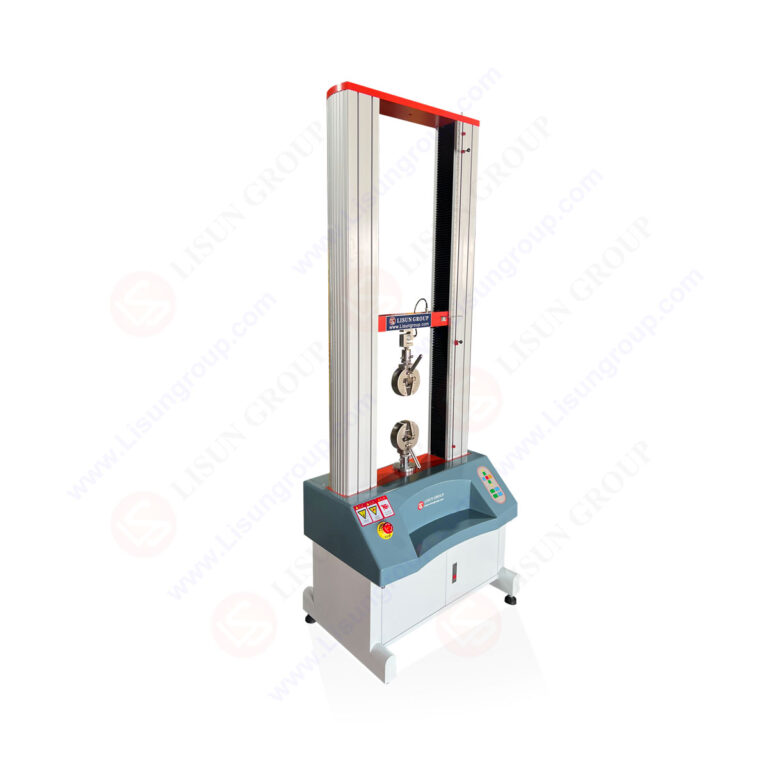

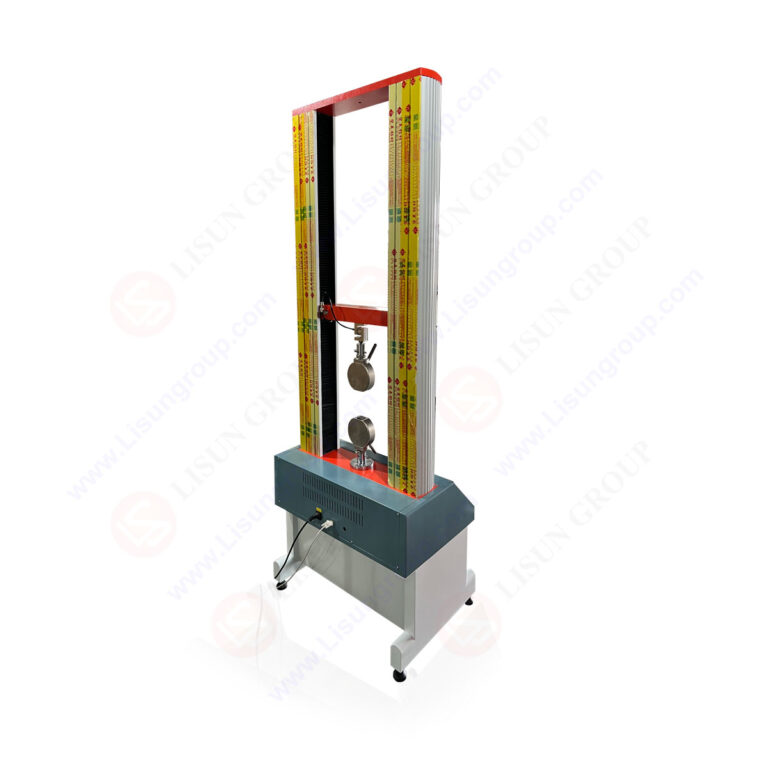

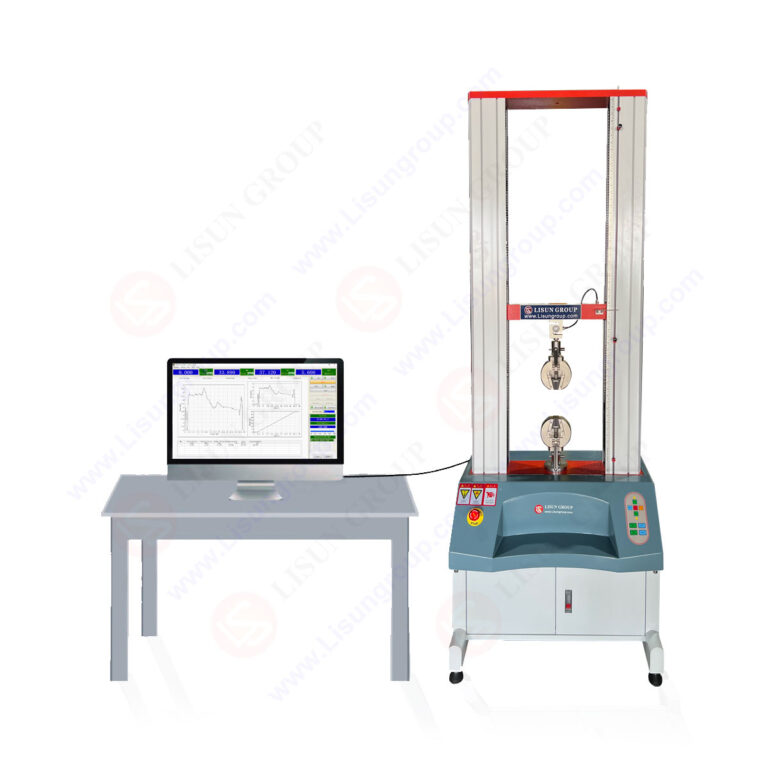

Product No: PULL-2000KG
The PULL-2000KG Universal Tensile Testing Machine | Universal Testing Machine – UTM adopts a computer-controlled mode and can perform mechanical property testing on various materials and finished products. The equipment collects test data through a high-precision force sensor, and with adjustable test rate control, it can perform various testing modes such as tensile, compression, peel, shear, tear, and bending tests on materials. During the test, it automatically records key data such as force and displacement, generates multiple types of test curves, and automatically calculates core parameters such as tensile strength, yield strength, and elongation according to relevant standards. Equipped with various sizes of clamps, it can adapt to test samples of different materials and shapes. It is widely used for mechanical property testing of non-metallic materials such as rubber, plastics, wires and cables, textiles, waterproof materials, and non-woven fabrics, as well as metal wires, metal foils, metal sheets, and metal rods.
Standards:
| Standards No. | Standards Name |
| ASTM D638:2022 | Standard Test Method for Tensile Properties of Plastics |
| DIN EN ISO 7500-1:2018 | Metallic materials – Verification of static uniaxial testing machines – Part 1: Tensile testing machines |
| DIN EN ISO 527-1:2019 | Plastics – Determination of tensile properties – Part 1: General principles |
| ISO 1924-2:2021 | Paper and board – Determination of tensile properties – Part 2: Constant rate of elongation method |
| ISO 5893:2019 | Rubber and plastics test equipment — Tensile, flexural and compression types – Specification |
| GB/T 16491-2022 | 电子式万能试验机 |
| GB/T 16825-2024 | 拉力试验机的检验 |
| GB/T 1040.1-2021 | 塑料 拉伸性能的测定 第1部分：总则 |
| GB/T 4850-2002 | 压敏胶粘带低速解卷强度的测定 |
| GB/T 12914-2023 | 纸和纸板抗张强度的测定 |
| GB/T 17200-2024 | 橡胶塑料拉力、压力和弯曲试验机技术规范 |
Specifications:
• Force units: N, KN, Kgf, and Lbf (convertible); Length units: mm, cm, and inch (convertible).
• Control methods: Computer software allows setting various control modes such as speed, running time, and load break (fracture).
• Automatically detects material fracture and crushing and automatically stops the machine; automatic return can be set.
• Curve types: Load-displacement, load-time, displacement-time, stress-strain, strain-time, stress-time. The x and y axes of the curves can be arbitrarily set.
• Standard fixture measurable parameters: Maximum force, minimum force, fracture value, tensile strength.
• Customized fixture/extensometer device measurable parameters: Compressive strength, upper and lower yield strengths, elastic modulus, elongation, maximum, minimum, and average values of the peel range.
• Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, and stroke protection.
• Includes a computer with pre-installed control software; the software supports Chinese, English, Russian and Spanish.
| LISUN Model | PULL-30T | PULL-20T | PULL-10T | PULL-5000KG | PULL-2000KG | PULL-500KG | PULL-200KG |
| Max Capacity | 30T | 20T | 10T | 5T | 2000KG | 500KG | 200KG |
| Product Name | Double Column Tensile Testing Machine | Single Column Tensile Testing Machine | |||||
| Effective width of experiment | 400 mm (Option: Design according to customer’s request) | 150 mm | |||||
| Test Trip (with fixtures) | 800 mm (Option: Design according to customer’s request) | ||||||
| Test Accuracy | High-precision tension/compression transducer – Class 0.5; Test force indication accuracy ≥ ±0.5%; Resolution 1/300,000 | ||||||
| Test Speed | Range: 0.001~500 mm/min (stepless speed regulation); Accuracy: ±0.5%; Displacement resolution: 0.001 mm | ||||||
| Overload Protection Function |
The system will automatically shut down for protection when the test force exceeds 10% of the set value. | ||||||
| Trip Setting Protection Function |
Protection settings for upper and lower travel limits | ||||||
| Servo Motor | Taiwan Delta servo motor + servo drive controller | ||||||
| Power Supply | 220~240V/Single Phase/50Hz (60Hz can be customized) | ||||||
| Standard Fixtures and Tools | A set of clamping fixtures and a set of tools (Others are option in belowing picture) | ||||||
Typical Applications:
1. Plastics and Rubber Products: Tensile property testing of various plastic sheets, pipes, films, and rubber seals.
2. Metal Materials: Tensile and yield strength testing of metal wires, foils, sheets, and rods.
3. Textiles and Nonwovens: Testing of breaking strength and elongation of textiles, nonwovens, and fibers.
4. Wires and Cables: Verification of tensile and peel properties of cable sheaths and insulation layers.
5. Waterproofing Materials: Mechanical property testing of waterproof membranes and coatings.
6. Adhesive Products: Peel strength and shear strength testing of tapes and adhesives.
7. Paper Products: Tensile property determination of paper and paperboard.
8. Electronic Components: Pull-out force testing of electronic component pins and connectors.
9. Building Materials: Compression and tensile property testing of small building materials and insulation materials.
10. Third-Party Testing Agencies: Compliance certification testing services for the mechanical properties of various materials.
PULL-2000KG Fixtures (Option)
