DIN-VDE 0620-1-Lehre 11 Prüfung der Nichteinführbarkeit zweipoliger Stecker ohne Schutzkontakt

This DIN-VDE 0620-1-Lehre 11 Prüfung der Nichteinführbarkeit zweipoliger Stecker ohne Schutzkontakt is designed to verify the non-insertability of two-pole plugs without a protective contact, adhering to the relevant requirements of the DIN VDE 0620 series standards. It serves as a critical testing tool to ensure the safety and compliance of sockets for household and similar applications, preventing improper insertion of non-compliant plugs that could lead to electrical hazards.

Specifications:

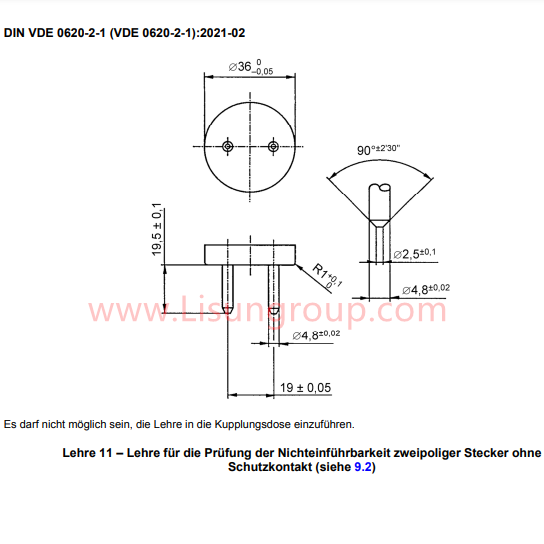

• Conforms to DIN VDE 0620-1 and DIN VDE 0620-2-1:2021-02 standards
• Angle specification: 90°±2’30”
• Dimension: ø2.5 (tolerance: 0.1)
• Dimension: R1 + 8⋅1, ø4.8 (tolerance: 0.02)
• Length specification: 19±0.05

Test Procedures:
• Prepare the socket under test to ensure it is in a normal and unused condition.
• Align the gauge with the socket’s insertion opening in accordance with the standard’s specified orientation.
• Attempt to insert the gauge into the socket with a reasonable and steady force.
• Observe whether the gauge can be inserted into the socket.
• Record the test result; the socket passes the test if the gauge cannot be inserted.

Applications:
• Safety testing of fixed sockets for household use.
• Compliance verification of sockets for similar applications beyond household scenarios.
• Quality control and inspection processes in socket manufacturing facilities.
• Conformity assessment by certification bodies and testing laboratories.
• R&D testing for socket design and improvement projects.

DIN-VDE 0620-1-Lehre 11 Prüfung der Nichteinführbarkeit zweipoliger Stecker ohne Schutzkontakt
