NF C 61-314 C7 CALIBRES POUR VÉRIFIER L’ENTRAXE DES BROCHES

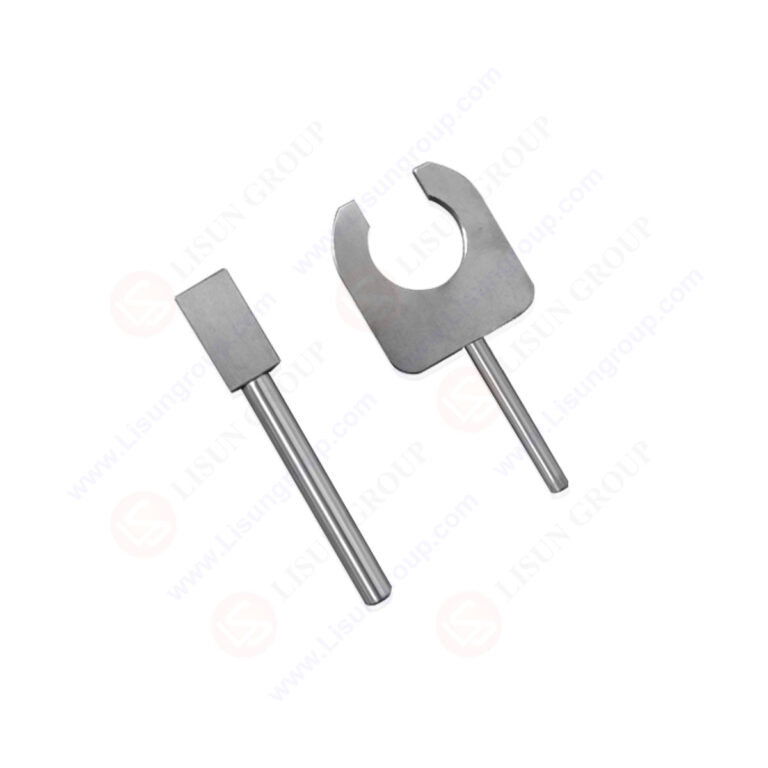

NF C 61-314 C7 CALIBRES POUR VÉRIFIER L’ENTRAXE DES BROCHES is a specialized gauge compliant with NF C 61-314 C7 standard, designed specifically for verifying the pin spacing of plugs and sockets. It is engineered to meet the strict requirements of relevant electrical component testing, ensuring the accuracy and consistency of pin spacing dimensions for electrical connection devices. As a key tool in the quality control and compliance testing process of plug and socket products, it helps manufacturers and testing institutions confirm that the pin spacing of their products conforms to the specified industry standards, thus guaranteeing the safety and compatibility of electrical connections.

Specifications
• Complies with the NF C 61-314 C7 standard
• Precise dimensional tolerance to ensure accurate pin spacing measurement
• Made of high-quality, wear-resistant materials for long-term stable use
• Ergonomic design for easy operation during testing
• Calibrated to meet professional testing equipment accuracy requirements

Test Procedures
• Prepare the gauge and the target plug or socket to be tested, ensuring both are free of debris and damage that may affect the test results.
• Position the gauge aligning with the pin area of the plug or socket according to the standard operation guidelines.
• Gently insert or fit the gauge into the corresponding position of the device under test to check the fit and spacing between pins.
• Observe and record whether the pin spacing meets the dimensional range specified by the NF C 61-314 C7 standard through the gauge’s measurement indicators.
• Remove the gauge after the test, clean and store it properly for subsequent use, and document the complete test data for traceability.

Applications
• Quality inspection of plug and socket products in electrical component manufacturing factories during the production process
• Compliance certification testing of electrical connection devices by third-party testing institutions
• Routine safety and performance verification of plugs and sockets in the maintenance and inspection of electrical equipment
• Research and development testing of new types of plug and socket products to verify the rationality of pin spacing design
• On-site inspection of electrical connection devices in construction and electrical engineering projects to ensure compliance with industry standards

NF C 61-314 C7 CALIBRES POUR VÉRIFIER L’ENTRAXE DES BROCHES
