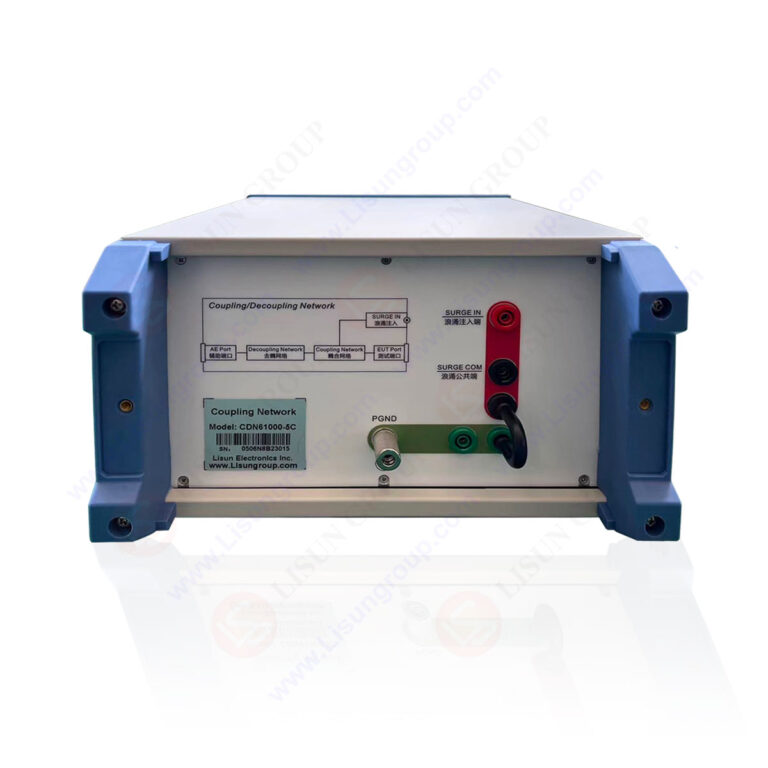

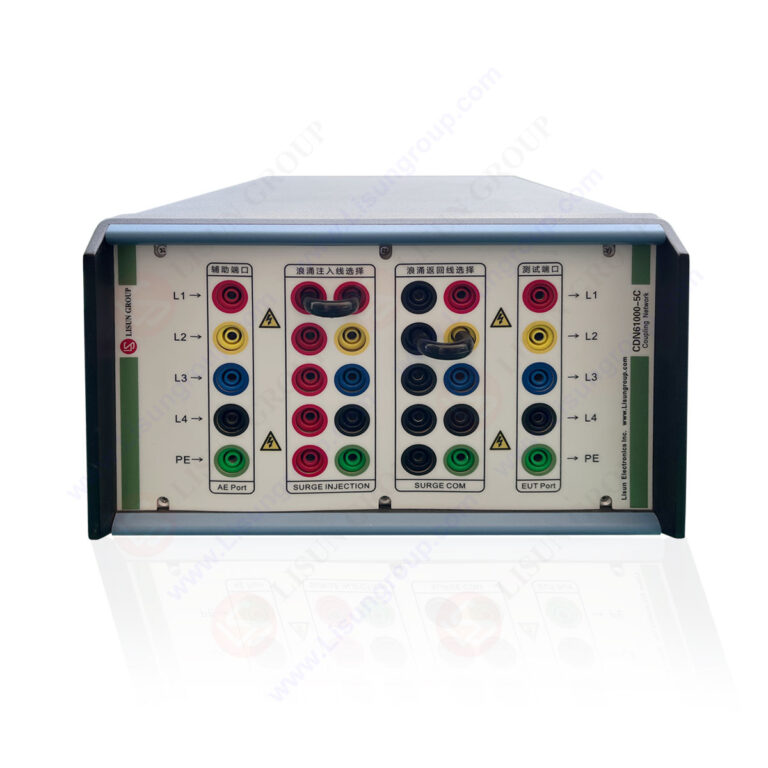

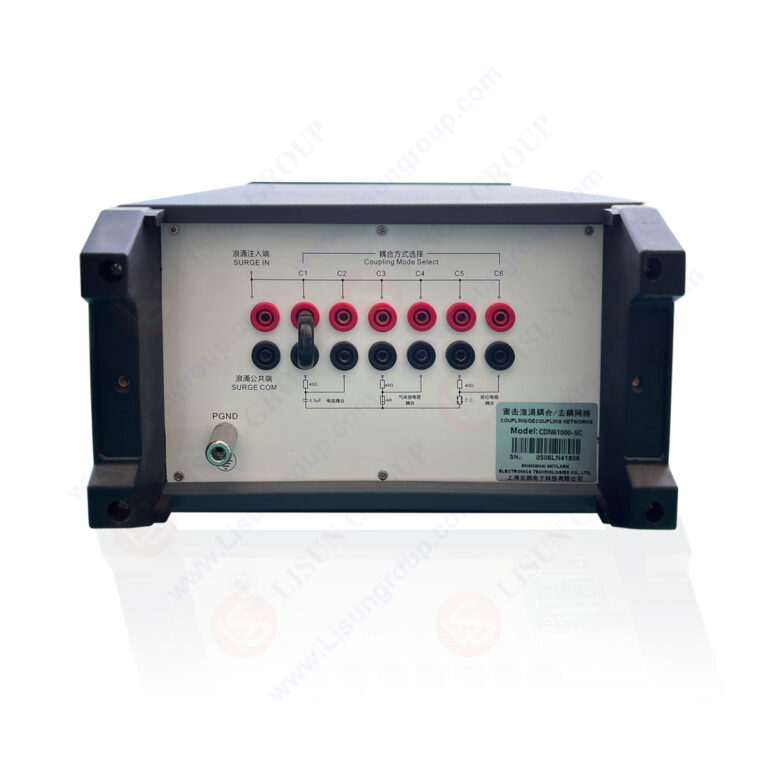

Coupling Decoupling Network for Communication Lines

Product No: CDN61000-5C

Specifications
Download
Standards
Applications

The CDN61000-5C Series Coupling Decoupling Network for Communication Lines fully meets IEC 61000-4-5, EN 61000-4-5, GB/T 17626.5, ITU-T K.45, ITU-T K.21 and ITU-T K.20. The output surge waveforms are Combine wave (1.2/50μs and 8/20μs) and CCITT wave (10/700μs and 5/320μs). CDN61000-5C Series can works with LISUN SG61000-5 Series Surge Generator to test all of the communication lines, signal wires and control cables.

Standard:
IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test

Specification:

LISUN Model	CDN61000-5C-H8CC	CDN61000-5C-H8BC	CDN61000-5C-M8TK	CDN61000-5C-M4CC	CDN61000-5C-M4BC	CDN61000-5C-L4BK
Data Rate	≤1000MB/s		≤10MB/s			≤100kB/s
EUT Channel	8 Channels			4 Channels
Coupling Waveform	10/700μs and 5/320μs	1.2/50μs and 8/20μs	1.2/50μs and 8/20μs、10/700μs and 5/320μs	10/700μs and 5/320μs	1.2/50μs and 8/20μs
Coupling Mode	Common Mode		Common Mode and Differential Mode	Common Mode		Common Mode and Differential Mode
Port Type	Unshielded Symmetrical Lines		Unshielded Symmetrical Lines, unshielded asymmetric line	Unshielded Symmetrical Lines		Unshielded Symmetrical Lines, unshielded asymmetric line
Max Surge Voltage	6KV (Note: 1.2/50μs CDN must work with SG61000-5 Generator; 10/700μs CDN must work with SG61000-5C Generator (SG61000-5C already has a built-in CDN61000-5C-M4CC)
EUT Type	Ethernet and LAN (such as RJ45)		LIN, CAN, RS485, RS232, RS422, 4-20mA			LIN, RS232

Remark: In the model CDN61000-5C-H8BC, CDN61000-5C means the CDN for communication lines, H/M/L means 1000MB/s or 10MB/s or 100kB/s speed, 8/4 means how many channels, B/C/T means 1.2/50μs or 10/700μs or 1.2/50μs and 10/700μs, D/C/K means differential mode/common mode/differential and common mode.

CDN61000-5C-H Series Coupling Decoupling Network for High Speed Communication Lines

CDN61000-5C-M Series Coupling Decoupling Network for Low Speed Communication Lines

Tags：CDN61000-5C

CDN61000-5C Calibrate Certificate CDN61000-5C-H8BC Calibrate Certificate CDN61000-5C-M8TK Calibrate Certificate
IEC 61000-4-5 Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test

IEC 61000-4-5 defines test methods for evaluating the surge immunity of electrical and electronic equipment when subjected to high-energy disturbances caused by switching and lightning transients.
