Common Mode Inductor Balance Tester
Common Mode Inductor Balance Tester

GET A QUOTE

=

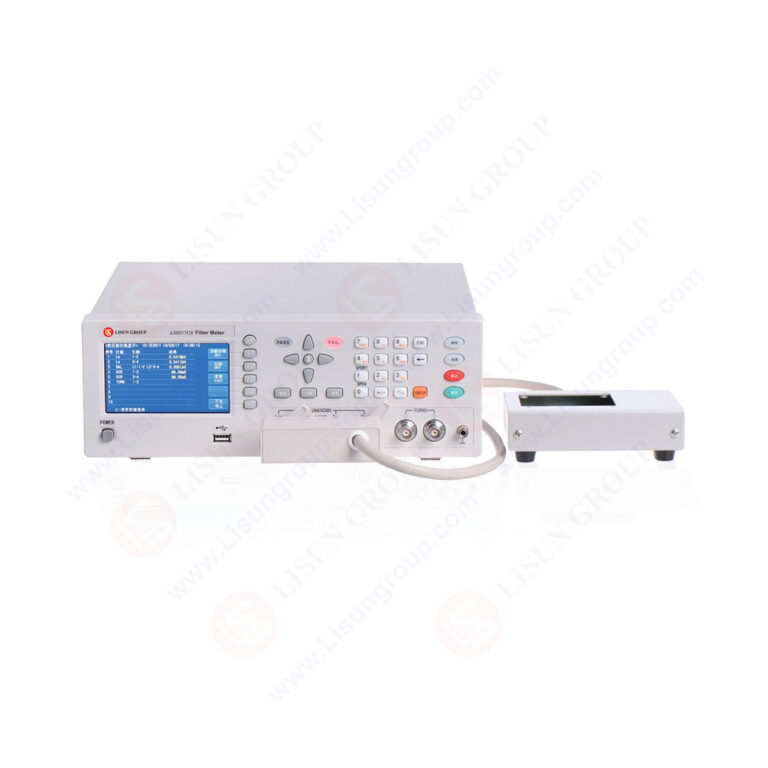

Common Mode Inductor Balance Tester

Product No: LS8517CX

  • Specifications
  • Technology

  • LS8517CX Common Mode Inductor Balance Tester, also known as Filter Balance Tester, is suitable for measuring the balance of Ls (inductance value) and DCR (direct current resistance) of various common mode inductors and filter common mode inductors.

    The LS8517CX features a high measurement accuracy of up to 0.1%, which can meet the measurement needs of multiple scenarios such as production line quality assurance, incoming inspection, and component design and evaluation. Meanwhile, it is equipped with comprehensive communication and control interfaces, which can simplify the connection process with automated equipment, ensuring convenient and efficient operation.

    Specifications：

    LISUN Model LS7575BN LS1085CX LS8517CX-4PA LS8517CX-6PA
    Test frequency 100Hz，120Hz，1kHz，10kHz 50Hz~200kHz，42 points 50Hz~200kHz，37 typical frequency points
    Number of Test Winding Pairs 1 pair of windings 2 pairs of windings 3 pairs of windings
    Test Parameters L、Q、R L、C、R、Q、|Z|、DCR L、R、Q、|Z|、θ(RAD)、C、DCR
    Test Level 0.1Vrms, 0.3Vrms, 1Vrms 10mV～1Vrms 50mV-2.0V，Continuously adjustable
    Basic Accuracy 0.1%，Accuracy table shall prevail 0.05%，Accuracy table shall prevail
    |Z| Display Range N/A 0.1 mΩ～99.999MΩ 0.1 mΩ～99.999MΩ
    L Display Range 0.0001μH～999.99H 0.0001μH～9999.9H 0.0001μH～999.99H/ 0.0001μH～9999.9H
    R Display Range 0.01 mΩ～99.999MΩ 0.1 mΩ～99.999MΩ 0.01 mΩ～99.999MΩ
    Q Display Range 0.0001～9999 0.0001～99999 0.1～9999.9
    θ(RAD) Display Range N/A -3.14159～3.14159
    θ(DEG) Display Range N/A -179.99 o ～179.99o
    Δ% Display Range N/A -99.999%～99.999%
    DCR Display Range N/A 0.1 mΩ～99.999MΩ 0.01mΩ-99.9999MΩ
    Test Speed Fast speed: 30 times/second,
    medium speed: 6 times/second,
    slow speed: 1.5 times/second    		 Fast speed: 50 times/second,
    medium speed: 20 times/second,
    slow speed: 6 times/second
    Signal Source Impedance 30Ω、100Ω 30Ω、50Ω、100Ω、10/100Ω
    Range Mode Automatic, hold
    Trigger Mode Internal, manual, external Internal, manual, automatic, external, bus
    Calibration Function Open/short circuit, full frequency clear zero
    Equivalent Circuit Series and parallel
    Comparator BIN0～BIN3、NG、Pass、Fail、Buzzer
    Interface RS232C、UsbHost、USB Device、Handler
    Memory N/A Internal 50 groups, external U disk 500 groups of files
    Operating Temperature and Humidity 0℃～40℃，Relative humidity≤75%
    Power Supply
    Volume 310*110*315mm
    Net Weight 2.5Kg 5.5Kg
