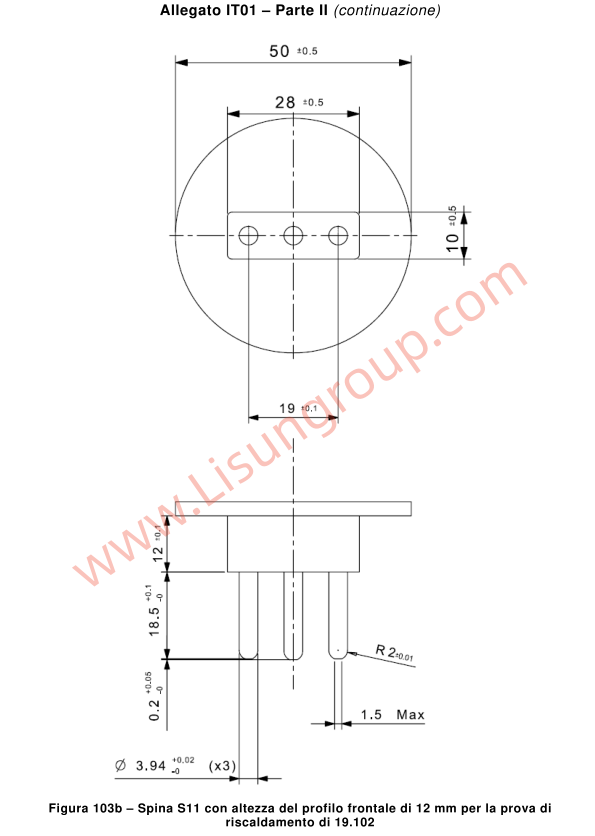

CEI 23-50 V4 Figure 103b Gauge

This CEI 23-50 V4 Figure 103b Gauge is a specialized testing component compliant with the CEI 23-50:2007 Standard, designed as part of the supplementary figures for plug and socket evaluation. Featuring a 12 mm front profile height, it is tailored for thermal testing as specified in the relevant standard, delivering precise dimensional control and consistent performance to support accurate assessment of electrical components. It adheres to strict manufacturing tolerances and design requirements, making it a reliable tool for verifying the thermal resistance and safety compliance of plugs and sockets.

Specifications:
• Front profile height: 12 mm
• Dimension with tolerance: 50 +0.5
• Dimension with tolerance: 28 ±0.5

Test Procedures:
• Prepare the test environment to meet the ambient and operational requirements outlined in the CEI 23-50:2007 Standard.
• Mount the gauge securely onto the test fixture, ensuring alignment with the plug or socket under evaluation as per the standard’s guidelines.
• Initiate the thermal testing process in accordance with section 19.102 of the CEI 23-50:2007 Standard, setting the appropriate test parameters.
• Maintain continuous monitoring of the test setup to ensure the gauge remains properly positioned and the test conditions are stable throughout the process.
• Record all relevant thermal performance data, including temperature variations and component responses, at specified intervals.
• Inspect the gauge for dimensional stability and structural integrity post-test to confirm no deformation or wear has occurred.
• Compile and analyze the test results to determine if the tested plug or socket meets the thermal resistance requirements of the CEI 23-50:2007 Standard.

Applications:
• Thermal resistance testing of S11 type plugs and sockets in compliance with CEI 23-50:2007 Standard requirements.
• Quality assurance and compliance verification for manufacturers producing electrical plugs and sockets for markets adhering to CEI specifications.
• Laboratory-based performance evaluation of electrical components to ensure safety and reliability under thermal stress.
• Calibration and validation of testing equipment used in the production and inspection of plug-and-socket assemblies.
• Regulatory compliance testing for products seeking market access in regions where the CEI 23-50:2007 Standard is mandated.
• R&D testing for the development of new plug and socket designs, ensuring alignment with industry thermal performance standards.
