BS 546 Figure 2 5A Withdrawal-pull Gauges for Effectiveness of Contact Dia. 0.199 in. 8 oz

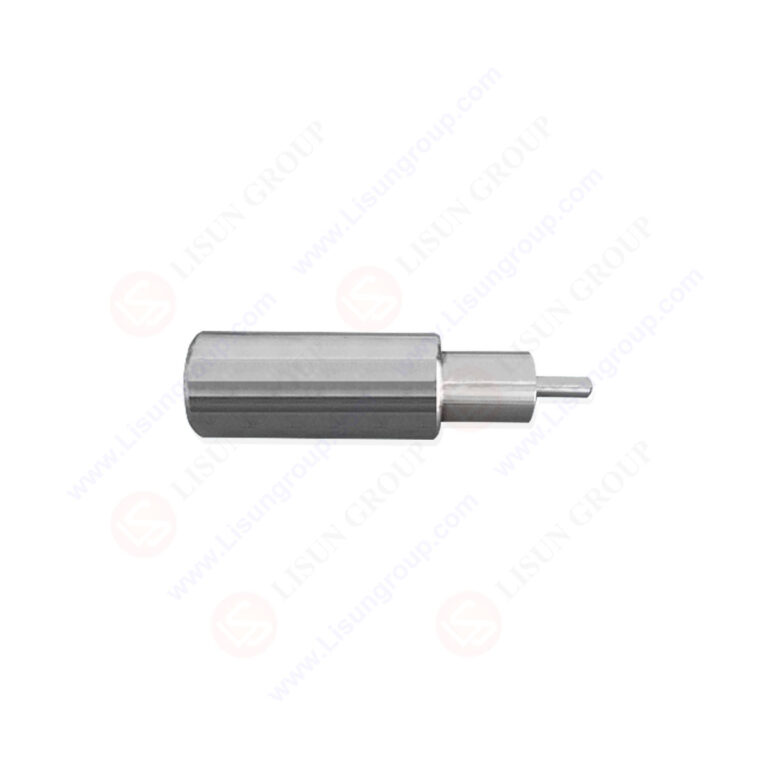

BS 546 Figure 2 5A Withdrawal-pull Gauges for Effectiveness of Contact Dia. 0.199 in. 8 oz is a specialized testing instrument crafted to assess the contact effectiveness, structural compliance, and dimensional accuracy of 5A plugs and sockets in line with BS 546 standards, as specified in Figure 2 of BS 546 (“Two-pole and earthing-pin plugs, socket-outlets and adaptors. Specification”). It employs a withdrawal-pull method to verify critical contact parameters, adhering strictly to the standard’s requirements for dimensions, tolerances, material properties, hardness, and surface roughness. With a material hardness exceeding 50HRC and a low thermal expansion coefficient, the gauge ensures stable and reliable performance, delivering precise results for validating the contact effectiveness of 5A electrical connection components.

Specifications
• Compliance standard: BS 546 (“Two-pole and earthing-pin plugs, socket-outlets and adaptors. Specification”) Figure 2
• Application rating: 5A
• Core function: Measures contact effectiveness via withdrawal-pull method
• Nominal contact diameter: 0.199 inches
• Gauge capacity: 8 ounces
• Material hardness: Over 50HRC
• Material thermal expansion coefficient: Low
• Key attributes (dimensions, tolerances, material, surface roughness): Fully compliant with BS 546 standard requirements
• Dimensional stability: Stable and reliable due to low thermal expansion coefficient
• Design feature: Includes specified radius (E radius) as per standard
• Total weight: Calibrated to meet standard requirements for testing accuracy

Test Procedures
• Prepare the 5A plug or socket sample for testing, ensuring it is free from damage, corrosion, or debris that could affect contact effectiveness or test results.
• Inspect the gauge to confirm its surface is clean, free from wear or deformation, and that its nominal diameter (0.199 in.) and weight meet BS 546 Figure 2 specifications.
• Align the gauge with the sample’s contact points in accordance with Clause 33 of the BS 546 standard, ensuring proper positioning for withdrawal-pull testing.
• Insert the gauge into the sample’s contact slot smoothly, simulating the connection of a standard 5A plug or socket.
• Apply the calibrated withdrawal force corresponding to the gauge’s 8-ounce capacity, following the standard’s prescribed method to assess contact retention.
• Verify whether the sample maintains consistent contact and structural integrity during the withdrawal process, confirming compliance with BS 546 requirements.
• Record the test results comprehensively, noting any deviations in contact effectiveness or dimensional conformity.
• Conclude whether the sample meets BS 546 standards based on the gauge’s inspection outcomes.

Applications
• Contact effectiveness testing of 5A plugs and sockets to verify compliance with BS 546 Figure 2 requirements.
• Dimensional and structural conformity inspection of 5A electrical connection components in the electronics industry.
• Quality control and compliance verification in the electrical appliance industry to ensure the safety and reliability of 5A plug-and-socket assemblies.
• R&D and production quality assurance for manufacturers of 5A two-pole and earthing-pin plugs, socket-outlets, and adaptors.
• Conformity assessment for electrical component manufacturers requiring adherence to BS 546 standards.
• Routine inspection of 5A plug and socket contacts in industries relying on BS 546-compliant electrical systems.
• Performance validation of contact retention for 5A electrical connection products in commercial, industrial, or residential applications.

5A Withdrawal-Pull Gauge for Effectiveness of Contact Dia. 0.199 in. 8 oz of BS 546 Figure 2
